101A Egg Grader (4,000 EGGS/HOUR)
ZENYER 101A egg grader is made of carbon steel with plastic coating process. This machine sorts eggs into 7 grades, with an accuracy of within ±1 gram and has the capacity of 4,000 eggs/hour. It can also be attached to a to form an egg processing line.
Eggs are placed onto the feeding unit, which then transports them to a mechanical weighing scale that will weigh the eggs into different grades and drop them into the corresponding table. ZENYER provides different egg grader models catering for both left and right loading.
| Name | Egg Grader |
| Product Code | 101A |
| Model | ZYF-J2-L(R) |
| Material | Carbon steel |
| Capacity | 4,000 eggs/hour |
| Accuracy | ±1 gram |
| Grade* | 7 |
| Feeding lines | 2 |
| Power* | 0.32KW |
| Voltage* | 220V-240V, 50HZ, single phase |

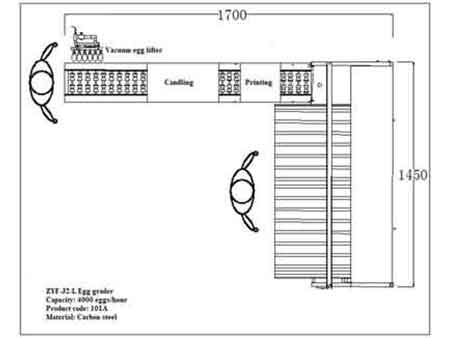

| Dimension (L*W*H) | 1.7×1.45×1 M |
| Net weight* | 150KG |
| Gross weight* | 240KG |
| Function | Egg grading & candling |
- Egg loading
- Candling
- Egg printing (Optional)
- Grading

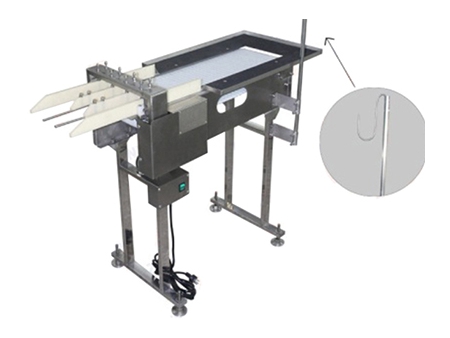

- Manual collection table
- Place eggs on the feeding unit manually.

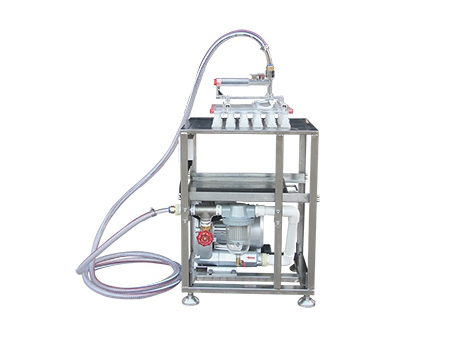

- Or connect and use to load 30 eggs on the accumulator each time. Through the accumulator, the eggs are divided into 2 rows and transferred into the feeding unit of 101A egg grader.

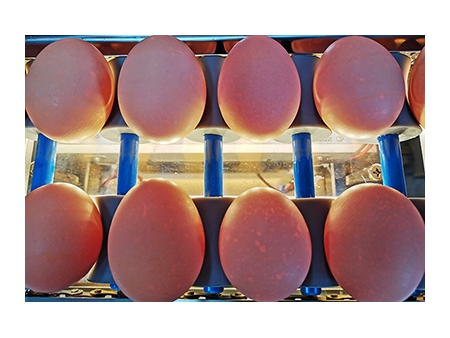

Eggs are transported to the candling unit through the roller of the feeding unit. You can check for any leaking, dirty, cracked eggs through candling light by eyes, and manually take them out.

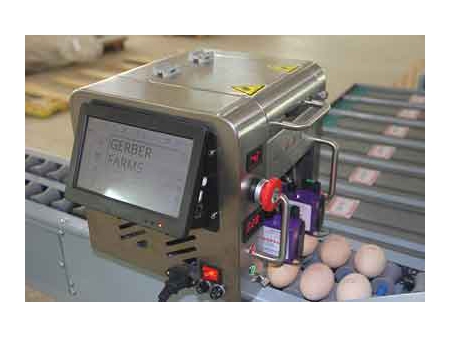

(2-print head) is an optional attachment to print the farm name, logo, date and Julian date, etc. on eggs.
Eggs are weighed and graded into 7 grades.

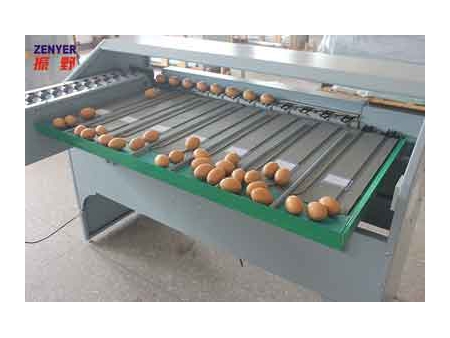

Graded eggs will roll onto the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.
