ER 5554 (AlMg2.7Mn) Aluminium Welding Wire

Request a Quote

View All: http://weldingwire-en.com/1-16-aluminium-welding-wire-er-5554.html

Welding Consumables

Aluminium-magnesium filler metal for MIG and TIG welding of basis metal 5454

Chemical Designation: AlMg2.7Mn
Standard: AWS A5.10, GB/T10858-2023

Chemical Composition (%)

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	AL	Be	Others
										Each	Total
≤0.25	≤0.40	≤0.10	0.50-1.0	2.4-3.0	0.05-0.20	≤0.25	0.05-0.20	Rest	≤0.0003	≤0.05	≤0.15

Mechanical Properties

Tensile Strength (MPa): ≥215
Yield Strength (MPa): ≥100
Elongation (%): ≥18

Available Sizes

Welding wire: 1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
Spool: D300 (9kg), D270 (7kg)

Features

Also known as SALMg-1, ER5554 welding wire is ideal for welding 5454 aluminium base metal, commonly used in structural applications
Offers excellent response to heat treatment, improving overall strength and durability
Contains magnesium and chromium for enhanced resistance to corrosion, especially in marine and industrial environments
Easy to work with during forming, cutting, and welding processes, thanks to its good machinability and ductility

Applications

Ideal for welding aluminium components in shipbuilding, offering strong corrosion resistance in marine environments
Commonly used in the automotive industry for welding car wheels, trailers, and other structural parts requiring good formability and strength
Suitable for rail vehicle fabrication, including parts that need to withstand long-term stress and vibration
Also applied in aerospace structures, to ensure reliable strength and durability

Packaging

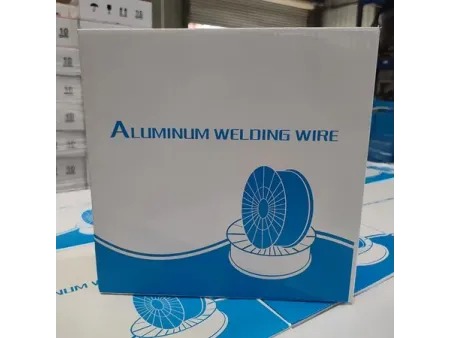

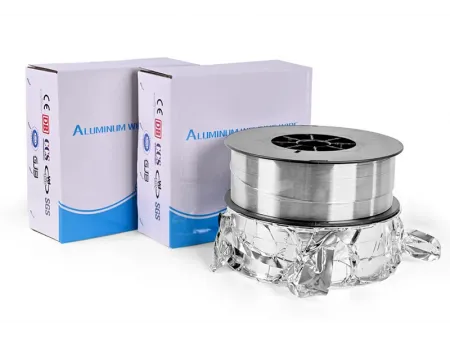

Spooled welding wire

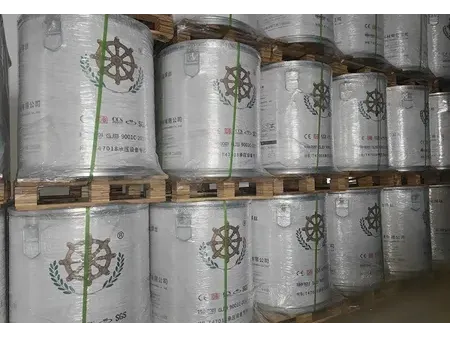

Drum packaged welding wire

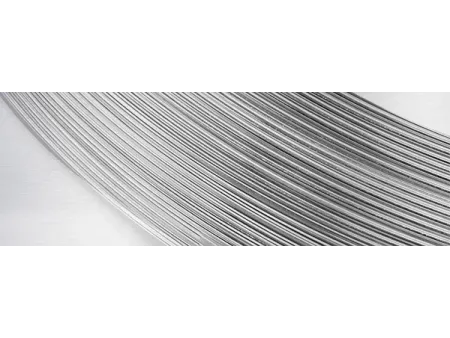

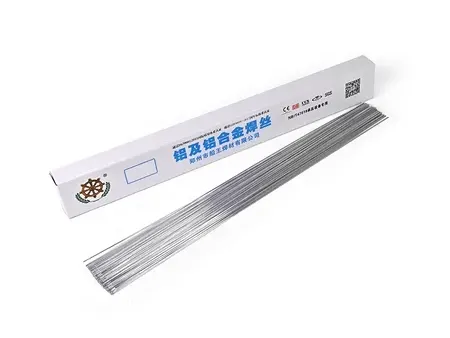

Straight welding wire

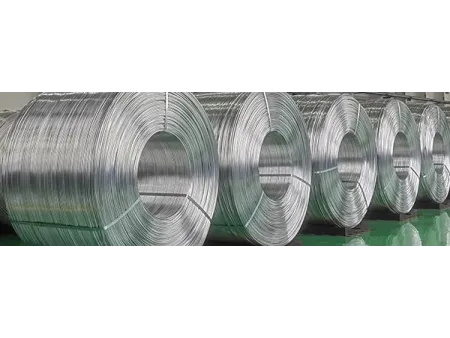

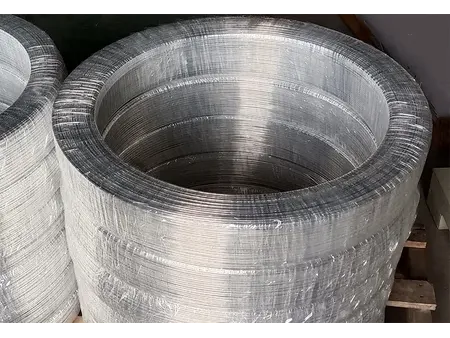

Coiled welding wire

MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
Package: D300 (9kg/spool), D270 (7kg/spool)

MIG wire diameter: 1.2mm, 1.6mm
Package: drum D660 (100kg/drum)

TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (10kg/box)

Welding wire diameter: 2.0mm, 3.0mm, 4.0mm, 5.0mm
Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Recommended Welding Method

For optimal welding results, ER 5554 performs best with alternating current (AC) and pure argon as shielding gas. Proper surface cleaning before welding is necessary, both the joint and the welding wire should be free from moisture, dust, and contaminants to ensure a stable arc and strong weld integrity.
