ER 5556 (AlMg5Mn1Ti(A)) Aluminium Welding Wire

Request a Quote

View All: http://weldingwire-en.com/1-17-aluminium-welding-wire-er-5556.html

Welding Consumables

Aluminium-magnesium filler metal for MIG and TIG welding of aluminium magnesium base materials

Chemical Designation: AlMg5Mn1Ti(A)
Standard: AWS A5.10, GB/T10858-2023
Tensile Strength: ≥290 MPa

Chemical Composition (%)

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al	Be	Others
										Each	Total
≤0.25	≤0.40	≤0.10	0.50-1.0	4.7-5.5	0.05-0.20	≤0.25	0.05-0.20	Rest	≤0.0003	≤0.05	≤0.15

Available Sizes

Welding wire: 1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
Spool: D300 (9kg), D270 (7kg)

Features

Offers high strength and solid mechanical performance, with a tensile strength of ≥290 MPa
Excellent wear resistance and corrosion protection, making it suitable for challenging environments
Good stress-relief capacity, helping maintain structural stability under pressure and in complex stress conditions

Applications

Commonly used in aerospace for welding fuel tanks, pipelines, and structural components

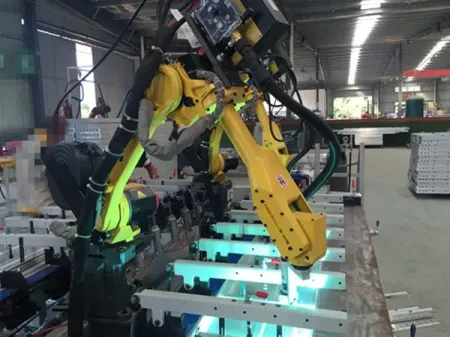

In automotive manufacturing, it's suitable for welding body frames, chassis, and other critical parts
In shipbuilding and rail transport, its strong corrosion resistance makes it ideal for hulls, carriages, and related structures

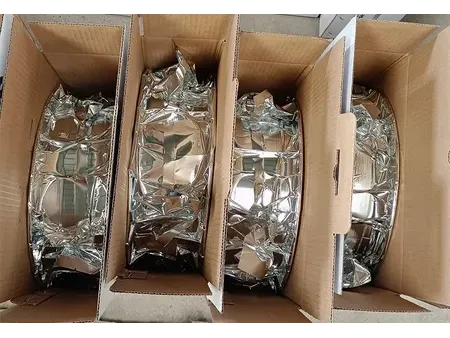

Packaging

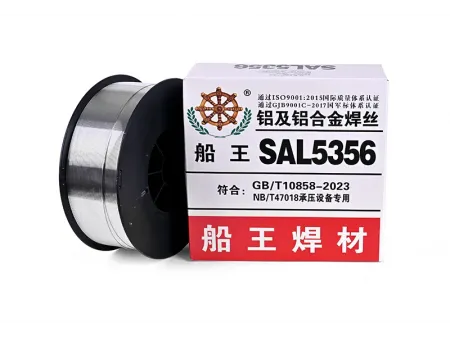

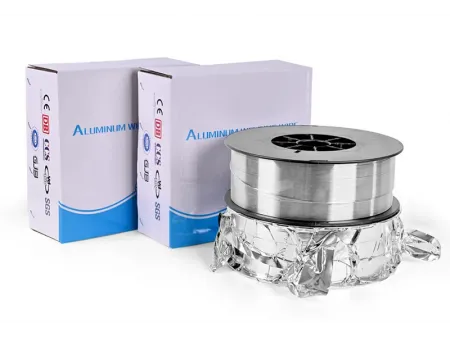

Spooled welding wire

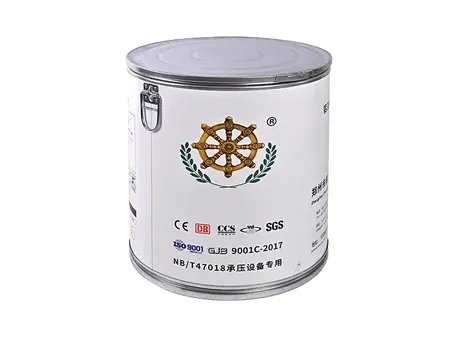

Drum packaged welding wire

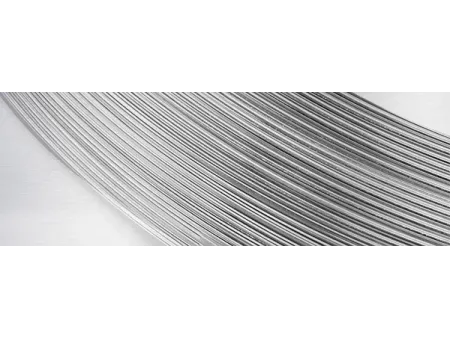

Straight welding wire
Coiled welding wire

MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
Package: D300 (9kg/spool), D270 (7kg/spool)

MIG wire diameter: 1.2mm, 1.6mm
Package: drum D660 (100kg/drum)

TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (10kg/box)

Welding wire diameter: 2.0mm, 3.0mm, 4.0mm, 5.0mm
Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Recommended Welding Method

When preparing for MIG or TIG welding, it's important to use alternating current (AC) and pure argon shielding gas to maintain arc stability and protect the weld pool. Always clean the area to be weld beforehand to remove any oil, moisture, or surface oxidation, this helps reduce porosity and ensures consistent weld quality under demanding conditions.
