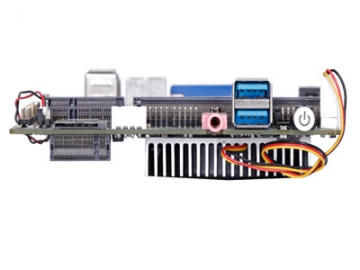

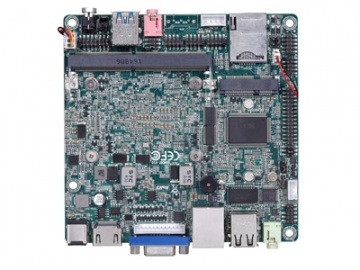

NANO6F/NANO7F Nano-ITX Motherboard, Intel® Skylake/ Kaby lake Processors, DC-Power, Thin Silent Cool Fan
Request a Quote
Parameters
| Model | NANO6F | NANO7F |
| Processor | Support Skylake 3855U, 3955U, I3-6100U, I5-6200U, I7-6500U, etc. | Support Kaby lake 3865U, 3965U, I3-7100U, I5-7200U, I7-7500U, etc. |
| Memory | 1xNB DDR4 Memory channel, support Max 16GB RAM | |
| Ethernet | Realtek 8111F 1000Mbps LAN, optional 2xLAN | |
| Audio | Realtek ALC662 HD Audio, support Line-out, Mic-in, SPDIF, Speaker. | |
| CPU Graphics | Intel HD Graphics 510/520/610/620 on CPU, support 4K(UHD), 1080P(2K,FHD), H264, 3D play. | |
| Display | VGA, HDMI, EDP, support synchronously, asynchronously dual, three display. | |
| Hard Disk | 1xSATA3.0 , 1xM.2(2242/2280) | |
| Power Supply | DC 12V~19V, recommend 12V/5A (Or more than 5A) DC port:5.5x2.5MM | |

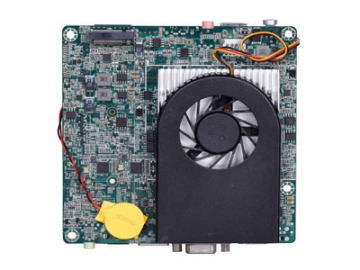

| CPU_FAN | Thin Silent Cool FAN | |
| Form Factor | Nano-ITX , 120 x120x36mm(L x W x H) | |

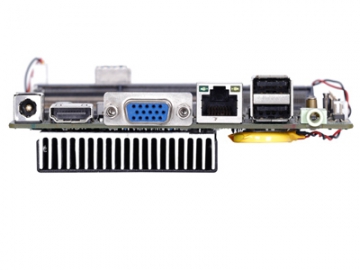

| I/O Port | DC-in, HDMI, VGA 4xUSB, LAN, Line-out, Mic-in, power button | |
| Build-in Pin | EDP, VGA, 4xUSB, 2xCOM (Optional RS232/RS422/RS485), GPIO, FAN, SIM Card slot, SPDIF, Speaker, Audio | |
| Expansion | 1xMini-PCIE slot, support Wi-Fi, Bluetooth, 4G/3G, MSATA | |
| Temperature | -20℃~60℃(Working) -20℃~70℃（Storage) | |
| Working Humidity | 5-95% relative humidity, non-condensing | |
| Operating System | Support Windows 7, Windows 8, Windows 10, Linux | |
| Fitted Case | N67 | |
| Architecture | X86 architecture | |
| Watch dog | Watch dog programming, support hardware reset function (256 levels, 0~255 seconds) | |
| BIOS | AMI BIOS; Support read only, power on, timing switch, remote switch, intelligently identify devices | |
