Request a Quote
Request a quote
  • Aluminum laminated air bubble film
  • Poly film laminated air bubble film
  • EPE foam laminated air bubble film

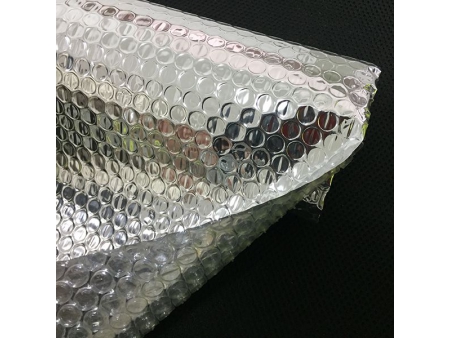

  • Aluminum laminated air bubble film

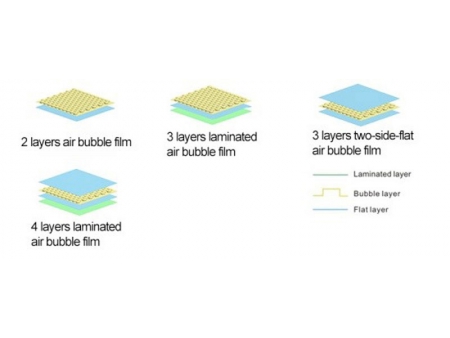

Structure Diagram of 2/3/4-layer Laminated Air Bubble Film
Features
  • Wide range of PE coated layers, including PE coated aluminum foil, PE coated kraft paper, polyethylene film, PE coated antistatic film, PE coated nonwoven fabric, etc.;
  • The design of double screw increases the productivity by 50%-80%, helping customers stay ahead in their competitive market;
  • The thickness and color of each layer can be individually adjusted;
  • Automatic cutting and rewinding, providing improved production efficiency;
  • 24-hour continuous running, high reliability and easy to operate;
  • SGS CE and ISO 9001 compliant;
  • Stable production process, long service life;
Details

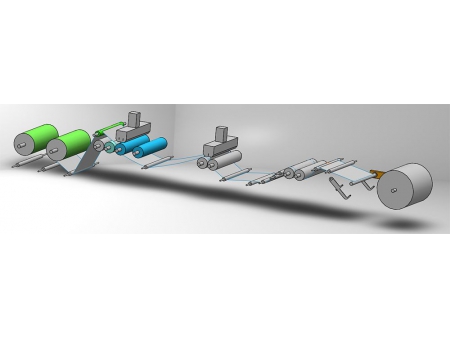

3D Process Flow Diagram
Specifications

Model: PT-L4-S3-W1200
Bubble film width (mm): 1200
Material: LDPE/LLDPE
Line speed (m/hr): 600-2100
Capacity (kg/hr): 85-140
Thickness (g/m2): 38- 300
Main screw diameter (mm): Φ65(x2)
Sub screw diameter (mm): Φ50
Heating power (kW): 82
Operation power (kW): 40
Installation power (kW): 122
Dimension (L×W×H) (m): 10×5.5×2.5
Weight (kg): 6500

Model: PT-L4-S3-W1600
Bubble film width (mm): 1600
Material: LDPE/LLDPE
Line speed (m/hr): 600-2100
Capacity (kg/hr): 100-170
Thickness (g/m2): 38-300
Main screw diameter (mm): Φ65(x2)
Sub screw diameter (mm): Φ50
Heating power (kW): 104
Operation power (kW): 51
Installation power (kW): 146
Dimension (L×W×H) (m): 10×6.5×2.5
Weight (kg): 7200

Model: PT-L4-S3-W2000
Bubble film width (mm): 2000
Material: LDPE/LLDPE
Line speed (m/hr): 600-2100
Capacity (kg/hr): 125-200
Thickness (g/m2): 40-300
Main screw diameter (mm): Φ75(x2)
Sub screw diameter (mm): Φ65
Heating power (kW): 136
Operation power (kW): 66
Installation power (kW): 201
Dimension (L×W×H) (m): 11×7.0×2.5
Weight (kg): 8000

Model: PT-L4-S3-W2600
Bubble film width (mm): 2600
Material: LDPE/LLDPE
Line speed (m/hr): 600-2100
Capacity (kg/hr): 145-220
Thickness (g/m2): 45-300
Main screw diameter (mm): Φ80(x2)
Sub screw diameter (mm): Φ75
Heating power (kW): 155
Operation power (kW): 75
Installation power (kW): 245
Dimension (L×W×H) (m): 12×8.0×2.5
Weight (kg): 9500

Model: PT-L4-S3-W3000
Bubble film width (mm): 3000
Material: LDPE/LLDPE
Line speed (m/hr): 600-2100
Capacity (kg/hr): 180-260
Thickness (g/m2): 45-300
Main screw diameter (mm): Φ90(x2)
Sub screw diameter (mm): Φ80
Heating power (kW): 180
Operation power (kW): 86
Installation power (kW): 298
Dimension (L×W×H) (m): 12×8.7×2.5
Weight (kg): 12000

Model PT-L4-S3-W1200 PT-L4-S3-W1600 PT-L4-S3-W2000 PT-L4-S3-W2600 PT-L4-S3-W3000
Bubble film width (mm) 1200 1600 2000 2600 3000
Material LDPE/LLDPE LDPE/LLDPE LDPE/LLDPE LDPE/LLDPE LDPE/LLDPE
Line speed (m/hr) 600-2100 600-2100 600-2100 600-2100 600-2100
Capacity (kg/hr) 85-140 100-170 125-200 145-220 180-260
Thickness (g/m2) 38- 300 38-300 40-300 45-300 45-300
Main screw diameter (mm) Φ65(x2) Φ65(x2) Φ75(x2) Φ80(x2) Φ90(x2)
Sub screw diameter (mm) Φ50 Φ50 Φ65 Φ75 Φ80
Heating power (kW) 82 104 136 155 180
Operation power (kW) 40 51 66 75 86
Installation power (kW) 122 146 201 245 298
Dimension (L×W×H) (m) 10×5.5×2.5 10×6.5×2.5 11×7.0×2.5 12×8.0×2.5 12×8.7×2.5
Weight (kg) 6500 7200 8000 9500 12000
