RSV Low Power Solenoid Valve Manufacturer

RSV Low Power Solenoid Valve

Request a Quote

View All: http://solenoidvalvecn.com

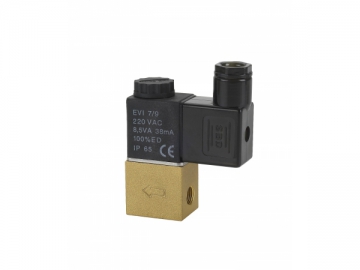

RSV Low Power SolenoidValve, G1/8" ~G1"

Features
1. The RSV low power solenoid valve is a valve for use with the water, gas and oil.
2. The temperature of the medium is between -10 and 80℃.
3. The acting pattern: pilottype and direct acting type.
4. Working pressure normally closed: 0.5-8bar.
5.The RSV low power solenoidvalve is made with forged brass.
6.It is sealed by the NBR membrane.
7.Protection degree of the coils encapsulatecoil:IP65.

Special Orders
We also offer the solenoid valve with special specifications.
1. If you order the solenoid valve with the VITONmembrane, then you should mark a V on the order form. This valve is for use withmediums at maximum temperature of 130℃.
2. If you prefer the EPDM membrane, then mark an E on theorder form. This valve is for use withmediums at maximum temperature of 110℃.

Technical Parameters of the RSVLow Power Solenoid Valve

Model		RSV-025-06	RSV-025-08	RSV-130-10	RSV-130-15	RSV-250-20	RSV-250-25
Screw thread G		1/8"	1/4"	3/8"	1/2"	3/4"	1"
Diameter	mm	2.5		13		25
Acting pattern		Direct acting		Pilot
Cv		0.23		6.2		23

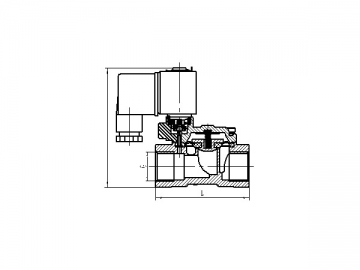

L	mm	30		72		102
H	mm	76		103		120
Temperature of the medium		-10 ~80℃
Operating pressure	bar	0.5 ~8
Max compression resistance	bar	10
Voltage		220V AC/50HZ 4.5VA; DC24V 6W; voltage range: -15%~ 10%, Solenoid valve in other voltage range can be made to order.

YUYAO NO.4 INSTRUMENT FACTORY is a China-based low powersolenoid valve manufacturer and supplier. We offer low power solenoid valve, stainless steel solenoid valve, plastic solenoid valve and so on. Our high quality products are offered atcompetitive prices. We can completethe full chain of manufacturing plate gas solenoid valve, liquid mini solenoidvalve, etc. right here in China. Our lower manufacturing cost saves yourpurchasing cost. More details on each ofour products are shown on the description page.
