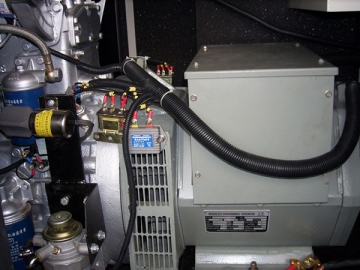

Kusing Diesel Generator, K30080
Request a Quote
View All: http://ksdieselgenerator.com
Technical Parameters
| Model | K30080 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 11.0 | 12.4 |
| KW | 8.8 | 9.9 | |
| Rated Power | KVA | 10.0 | 11.3 |
| KW | 8.0 | 9.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 14 | 16 |
| Fuel Consumption | G/KW.H | ≤235 | |
| Generator Controller | Auto Multi-function | ||
| Engine Model. | Y385 | ||
| Alternator Model. | TCU168B | ||
| Clinder No. | 3 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 1500*850*1100 | |
| Open Type | 1420*700*950 | ||
| Optional | ATS (auto transfer switch) | ||
