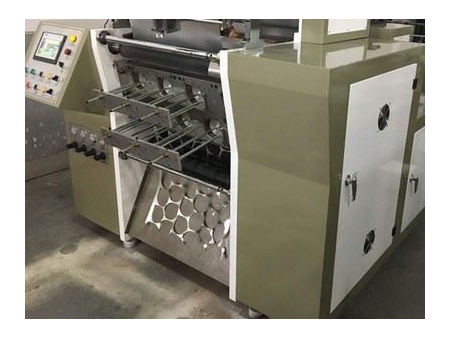

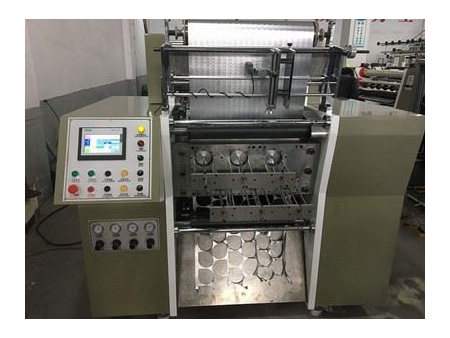

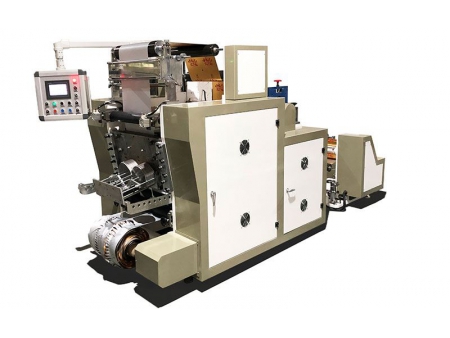

The aluminum foil lid punching machine can punch not only aluminum foil and papers but also PE, PP, PET laminated aluminum foil. The punching mold is customized for minimizing the waste and has long service time. This is an ideal equipment for producing yogurt covers.

Features
  • The control system is integrated on the body, with a high degree of automation and flexible operation
  • The raw material base adopts analog photoelectric control automatic deviation correction system
  • This machine has the function of automatically marking up to the number of times, which is convenient to operate
Specification
Model
MQCB-320
MQCB-620
Cutting material Aluminum foil, plastic film,paper (0.035~0.2mm)
Cutting effective size 350*300mm 580*320mm
Mechanical speed 120times/min
Max speed 100times/min
Unwinding diameter ¢600mm (3 inch air shaft)
Traction motor 0.75kw frequency convention motor
Mold driven motor 3.7kw frequency convention motor
Length control motor 3kw servo motor
Driven style synchronous belt
Precision ± 0.5mm
Web-guiding accuracy ± 0.5mm 120mm
Guiding roller ¢ 100x350mm hard AL alloy HV700 ¢ 100x620mm hard AL alloy HV700
Mechanical structure 40mm thickness steel plate
Working power 380V/3P/50Hz 5 wires
Total power About 6kw About 8kw
Machine weight About 1500kg About 2000kg
Overall dimension 2000X1400X1700mm 2400X1700X1700mm
