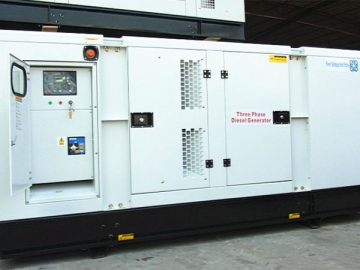

Lovol Diesel Generator, PK31500
Request a Quote
View All: http://ksdieselgenerator.com
Technical Parameters
| Model | PK31500 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 206.0 | 225.0 |
| KW | 165.0 | 180.0 | |
| Rated Power | KVA | 187.5 | 200.0 |
| KW | 150.0 | 160.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 271 | 289 |
| Fuel Consumption | G/KW.H | ≤205 | |

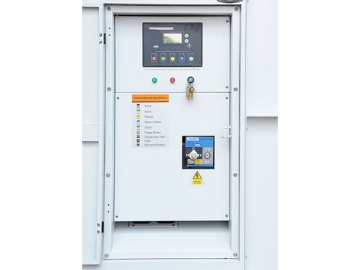

| Generator Controller | Auto Multi-function | ||
| Engine Model. | 1106C-P6TAG4 | ||
| Alternator Model. | TCU288C | ||
| Clinder No. | 6 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 3600*1100*1450 | |
| Open Type | 2500*950*1200 | ||
| Optional | ATS (auto transfer switch) | ||
