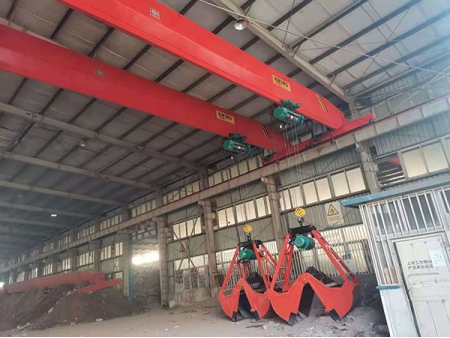

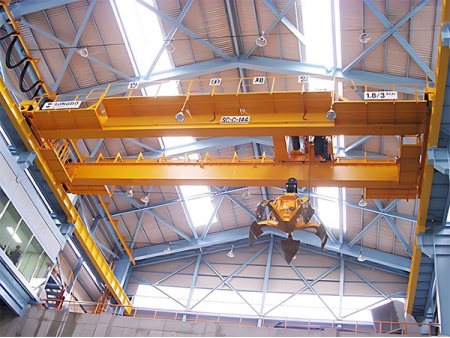

The lifting capacity of grab bridge crane is about 5-25 tons. It is widely used in power stations, warehouses, workshops, and ports for loading and unloading scattered objects. Grab bridge cranes are mainly used for medium to heavy lifting work.

Specification
Lifting capacity 5-25t
Lifting height 10-26m
Span 10.5-31.5m
Lifting speed 40.1-48.6 m/min
Trolley speed 87.3-113 m/min
Working class A6
Working temperature -25~40 °C
Power source three-phase, 380V 50HZ
Control mode Cabin control/remote control
Features
  • Mainly used for hoisting 5t~20t objects
  • The structure optimization of main beam is realized by computer design
  • Compact structure, light weight, good performance
  • Large span, high lifting height
  • Widely used in workshops, metallurgy, warehouses, assembly workshops
List of materials grabbed by various grab buckets
Grab type Grab material Material capacity weight(t/㎡)
Light coke, slag, cereals, potatoes, medium anthracite lime, cement, soil, gravel, clay, broken brick, etc. 0.5-1.2
Medium peat, large anthracite, compacted coal, clay, limestone, crushed stone, sale, gravel, brick, bauxite, flake iron oxide scale, cement, sand and brick in water, etc. >1.2-2.0
Heavy limestone, heavy clay, medium and small ores, hard stones, rod-shaped iron oxide scale, iron ore, lead concentrate powder, etc. >2.0-2.6
Super heavy large ore, large manganese ore, sedimentary agglomerated lead ore powder, etc. 2.6-3.3
Type of Crane Grab

The grab of the grab bridge crane is divided into many types according to the structure and function, the most common is the four rope grab.

  • Common four rope grab
  • Four rope paina grab bucket
  • Double rope grab
  • Single rope hanging grab
  • Electro hydraulic clamshell grab
  • Electro hydraulic multi flap grab
