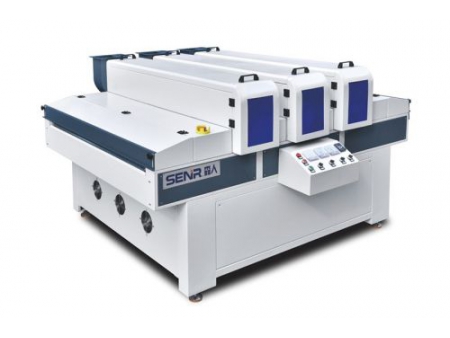

Three-Lamp UV Dryer

Three-Lamp UV Dryer
Three-Lamp UV Dryer
Three-Lamp UV Dryer
Three-Lamp UV Dryer
Request a Quote

UV curing system for drying UV paint on flat surfaces

This coating dryer is equipped with three UV lighting drying lamps for a higher drying efficiency. It will instantly dry flat panels coated in a UV paint, as well as enhance their surface hardness and brightness.

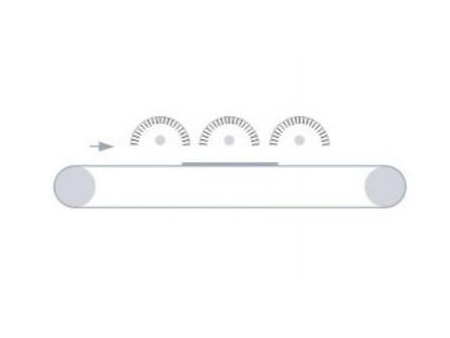

Working principle

The UV paint coated product is transferred with the use of a conveyor belt, and passes through a dryer light box equipped with UV lamps, where the UV paint will chemically react to the light, and cross link to form a film. By doing so, the product surface becomes dry.

Specifications
Effective processing thickness 2-80mm
Effective processing width 620/920/1320mm(optional)
Minimum processing length 300mm
Transport speed 0-20m/min
Transfer power 0.75kW
Power supply 380V/50Hz
Paint type UV
Details
  • The irradiation density of the UV lamps is adjustable and equipped with a high-strength capacitor and transformer, both of which enhance the UV lamp stability.
  • The reflector panel on the lamps' outer cover allows for the UV light reflectivity to reach 99%, thus reducing energy consumption.
  • The light box inlet and outlet are equipped with light screens in order to effectively prevent UV light leaks.
  • The light box is equipped with an air-cooling system and a temperature controller to precisely control its internal temperature, thereby extending the lamp service life.
  • Depending on the type, the panels can be transported using a chain, stainless steel, or roller conveyor.
Optional models
Model Effective processing width (mm) Lamp power (kw) Fan power (kw) Outline size (LWH)
SR-U3-620 620 5.6*3 0.55*3 2100x1700x1500
SR-U3-920 920 8.0*3 0.75*3 2100x2000x1500
SR-U3-1320 1320 9.6*3 0.75*3 2100x2400x1500
