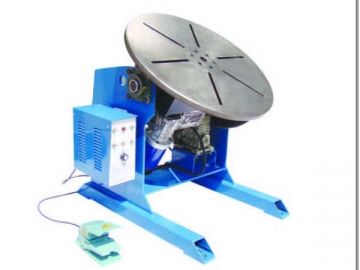

Motor Drive Welding Positioner
Technical Parameters
Model | BY-600 | |
Input power | AC 380V 50/60HZ | |
Carrying Capacity (Worktable Horizontally / Vertically ) | 600kg /300kg | |
Worktable | Diameter | 650mm |
Height | 675mm | |
Rotating Speed | 0.2-1.8rpm | |
Tilting Angle | 0-90° | |
Tilting Mode | Motor Driving | |
Tilting Speed | 0.2-1.8 rpm | |
Power of Motor for Rotary | AC 0.37kW | |
Power of Motor for Tilting | AC 0.55kW | |
Max. Eccentricity | 150mm | |
Max. Distance of Center of Gravity | 150mm | |
Outside Dimension | 650×800×675mm | |
