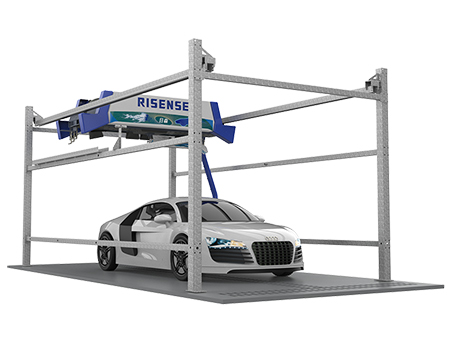

Single Arm Touchless Car Wash Machine HP-231
The single arm touchless car wash machine is the independently researched and developed full automatic intelligent touch free car wash system integrated with the washing and maintaining together. It has the following functions: chassis washing, car pre-washing, wipe-free shampoo spraying, high pressure water washing, bright wax coating and rapid air drying, etc.
- Functions
- Equipment parameter
- Advantages
- Details
- Chassis washing
- Car pre-washing
- Wipe-free shampoo spraying
- High pressure water washing
- Foaming shampoo washing
- High pressure water washing
- Bright wax coating
- Rapid air drying

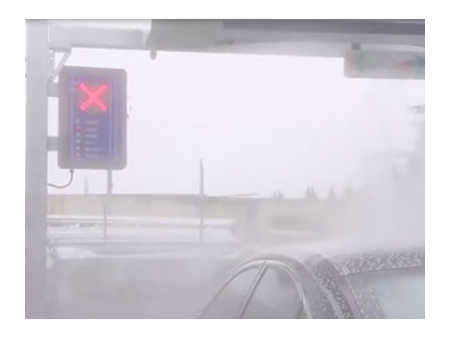

LCD screen and voice prompts
Touchless car wash machine HP-231 | |
Overall dimension | 6700*3315*3150mm (with chassis spray) |
Installation size | 7600*3500*3300mm (with chassis spray) |
Installation room size | 3500*1800*2300mm |
Voltage | 3-phase 380V 50Hz |
Power | Total power: 42kW, max. working power: 22kW |
Water pump pressure | 6-8MPa |
Air source pressure | 0.5-0.7MPa |
Available car to wash | Car/coach/business car within 7 seats |
Car washing size | 5300*2200*2050mm |
Car wash capacity | Normal washing: 3min/car, thorough washing: 5min/car |
Water consumption | 208L/car |
Power consumption | 1.13kWh/car |
Shampoo consumption | 35-60ml/car |
Wipe-free detergent shampoo consumption | 30-50ml/car |
Wax consumption | 30-40ml/car |
Frame | Hot-dipped galvanized steel frame |
Frequency converter | Delta |
Touch screen | Delta |
Electric control system | Delta |
High pressure plunger pump | LTD |
Ultrasonic sensor | P F |
Photoelectric sensor | Banner from the USA |
Proximity sensor | P F |
Contactor | Schneider |
Metering pump | Newdose |
High pressure spray nozzle | Spraying |
Unique design
- The appearance is streamlined and beautiful, simple and fashionable and combines practicability and beauty.
- The overall structure is smooth and the structure of the walking trolley is reasonable. The running of the car washing equipment is with high stability and is safer to use.
- The material selected is exquisite, strong and light, simple and durable.
- CAE computer aided simulation design makes the angle and location of the nozzle reasonably displayed to prevent the offset current from reducing the washing effect and to fully cover the car body in 360 degrees.
- With the intelligent car distance estimation and safe anti-collision protection function, the car can be washed with equal pressure, equal distance and uniform speed.
Good effect
- The 7-type swing arm is designed in different positions on the top and bottom to reduce the impact force of water flow in the horizontal and vertical directions so as to achieve better cleaning effects.
- The steps of automatic mixing and high-pressure atomization of the wipe-free automobile detergent and water forms the micro granular water mist to spray the car surface and have full contact including the dirt in the gaps of the car body.
- The crystal coating wax can form a layer of high molecular polymer on the surface of the car paint, which becomes a hard protective film after being fused with soft water. It not only makes the car paint brighter, but also protects the car paint for a longer time.

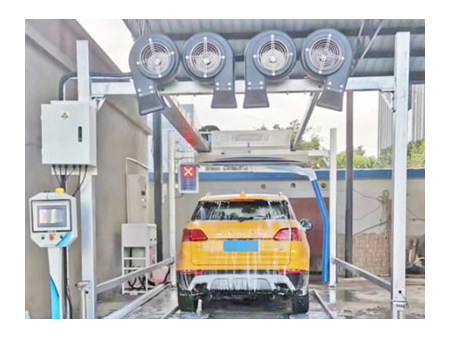

- Externally firmly fixed 4 groups of 4kw turbine multi blade air drying system with high air pressure adopts aerodynamic principle and international technology. They will form wind curtain wall which improves the drying effect.
-

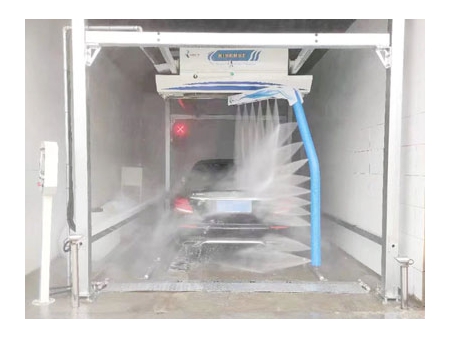

360° high-pressure washing system
-
Car shampoo spray
-
Top high pressure nozzles
-
Side high pressure nozzles
-
Wax spray
-
Quick drying
-
Simple streamline design
1. The unique streamline design visually shows power of machines.
2. Structural stability ensures safety of use and the conveyors are well designed to protect cars and users.
3. Well-chosen materials are lightweight and sturdy and thus perform well in terms of durability. -
360 degrees rotating robotic arm
1. Thanks to the CAE tool, distance, position and angles of nozzles in the arm are carefully calculated and well arranged to avoid the spray offset and cover the entire car body.
2. The rotating arm is equipped with anti-collision devices to calculate the safe distance.
3. The rotating robotic arm can do the high-pressure pre-wash job, car wash and wax spray.
4. The arm features safety and stability of use since it cleans cars equidistantly with proper pressure at a constant speed. -
High-strength frame
The high-strength frame is made of Q235 steel (4mm thick). After processing of surface pickling, phosphorization and hot-dip galvanization, the frame has proved its outstanding anti-corrosion capacity as it is rated 10 in the salt mist test in the SGS laboratory.
-
Undercarriage wash system
The single arm touchless car wash machine HP-231 is equipped with the undercarriage wash system and able to thoroughly rinse car wheels and the undercarriage with the hydraulic pressure reaching 90 kg.
The undercarriage wash system can automatically adapt to different car lengths and clean the entire car body equidistantly with proper pressure at a constant speed.
-
Car shampoo spray

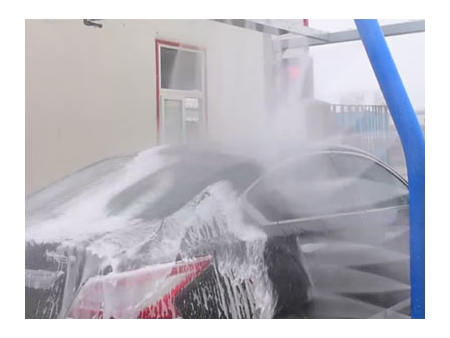

The quality car shampoo can produce thick and rich foam to remove dust and dirt on the car surface without any scratches
-
Wax spray
The car wax offers the car exterior an incredible shine and protects paintwork as it is formulated to form a high polymer sheeting on the surface of car paintwork.
-

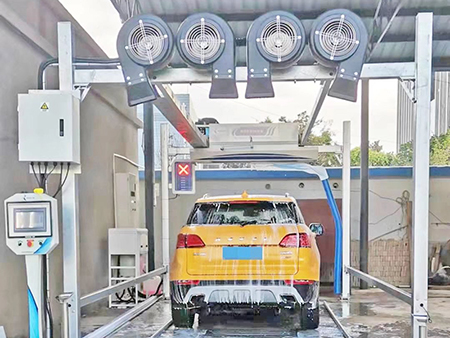

High-pressure air dryer system

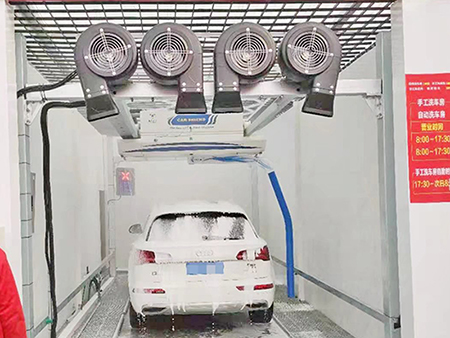

The high-pressure air dryer system of the single arm touchless car wash machine HP-231 consists of 4 sets of air dryers equipped with turbochargers (5.5kw). Based on aerodynamics, the air dryer combinations applying the state-of-the art technology can produce the air power as strong as a curtain and deliver more than 85% drying effect
-
Oscillating arm
The oscillating design of the robotic arm largely reduces the offset effect of the vertical and horizontal water spray, which can optimize the rinsing performance.
The ultrasonic sensors which measure the car length and position the car help keep a safe distance between nozzles and the car body and clean rearview mirrors with a robotic arm.
The ultrasonic sensors are proof against interference of water spray, which ensures the safety of the car washing process.
-
High-pressure undercarriage wash
The undercarriage wash system consists of two sets of nozzles on both sides that are responsible for cleaning wheels and lower parts of the car body, and a set of nozzles underneath for cleaning the chassis.
Nozzles can deliver high volume of water with pressure up to 90 kg to efficiently remove dirt and debris.
-
360-degree rotating arm
The multiplexing arm can do the pre-soak rinse, high-pressure wash and wax spray job. It takes only 27 seconds for the arm to complete a full rotation.

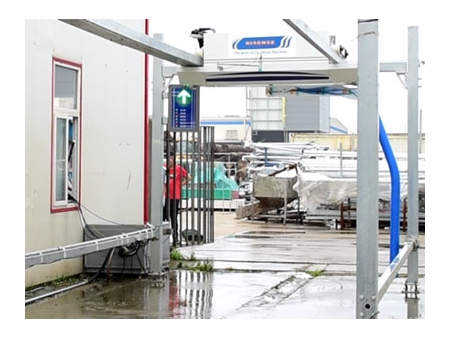

Two-way conveyors
The two-way convey design enables different types of cars to keep a safe distance from the machine, which ensures safe car wash with proper pressure at a constant speed.
-
Snow foam shampoo
The car shampoo containing broad-spectrum surfactant can product thick and rich snow foam to effectively remove dirt and debris.
-
Enhanced shine
The car shampoo can enhance shine of paintwork.
-

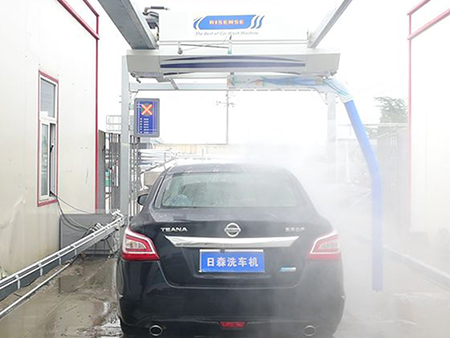

Waterless car wash spray
The machine automatically blends the car shampoo and water at a proper ratio and atomizes mixture to achieve fine spray distributions to cover the whole car exterior, even recesses, to effectively lift away dirt. 20 to 25 ml waterless spray for each car helps you control the cost.
-
Crystal coating
The crystal coating wax can form high polymer sheeting on the surface of paintwork which produces a mirror-like shine effect and protects the paint after combining with soft water.
The crystal coating meets the needs of enhancing water beading and repellency, delivering mirror-like shine and protecting paint from acid rain, pollution and the ultraviolet ray.
