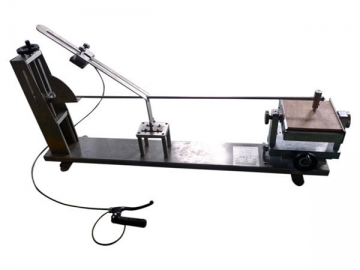

Pendulum Hammer Test Apparatus HC9921A

Pendulum Hammer Test Apparatus HC9921A
Pendulum Hammer Test Apparatus HC9921A
Pendulum Hammer Test Apparatus HC9921A
Pendulum Hammer Test Apparatus HC9921A
Pendulum Hammer Test Apparatus HC9921A
Pendulum Hammer Test Apparatus HC9921A
Pendulum Hammer Test Apparatus HC9921A
Pendulum Hammer Test Apparatus HC9921A
Pendulum Hammer Test Apparatus HC9921A
Pendulum Hammer Test Apparatus HC9921A
Request a Quote

Standard
IEC60884-1 2013 clause 24.1, IEC60669-1, IEC60068-2-75

Application
This device is designed to test the mechanical strength of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories for household plugs.

Test Sample
Plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.

Feature

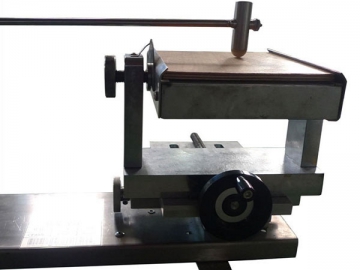

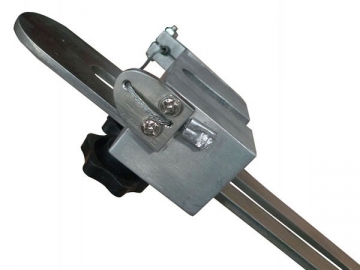

The mounting bracket can be moved up and down, left and right and the impact angle can be adjusted. The device is a low energy pendulum impact device for 2J and below.

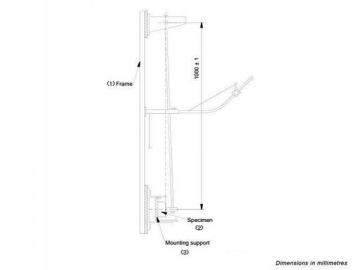

  • (1)Frame, (2)Specimen, (3)Mounting support

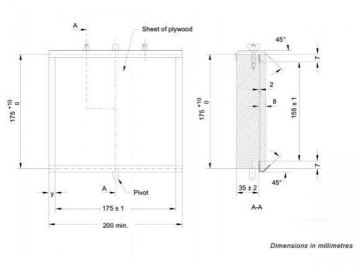

  • ① Polyamide ②,③,④,⑤ Steel Fe 360

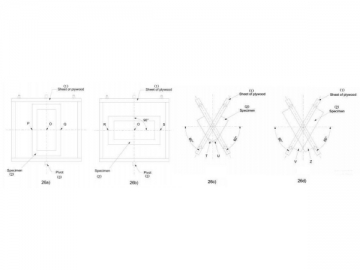

Application of the blows
Sketch Total number of blows Points of application Parts to be tested
26a) 3 One at the centre One between O and P a One between O and Q a A
26b) 2 One between O and R a One between O and S a A
26c) 2 One on the surface T a One on the surface U a B,C and D
26d) 2 One on the surface V a One on the surface Z a B,C and D
The blow is applied to the most unfavorable point

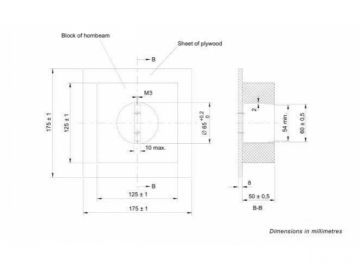

The dimension of the recess in the hornbeam block are given as an example. More general dimensions are under consideration.

Parameters
1. Pendulum: Length: 1000mm; external diameter: 9mm; steel pipe wall thickness: 0.5mm; material: steel; weight: 100±1g
2. Mounting bracket: weight: 10±1 kg; it is well-set and the Horizontal direction and the vertical direction can be adjusted. The whole bracket can be rotated 90°through the rotation axis.
3. Striking element: 150g, equivalent mass 200g. (200g striking element for option)
4. Impact energy, equivalent mass and drop height table
5. Operation: manual release of the striking element

Energy/J 0.14 0.2 (0.3) 0.35 (0.4) 0.5 0.7 1 2 5 10 20 50
Equivalent mass /kg 0.25 (0.2) 0.25 (0.2) 0.25 (0.2) (0.2) 0.25 0.25 0 .25 0.5 1.7 5 5 10
drop height ±1%mm 56 (100) 80 (150) 140 (200) (250) 200 280 400 400 300 200 400 500
Notes:
1. See note in IEC 60068-2-75 3.2.2
2. In this part, the energy (J) is calculated taking the standard acceleration due to the earth's gravity(g), rounded up to the nearest whole number, that is 10m/s².
