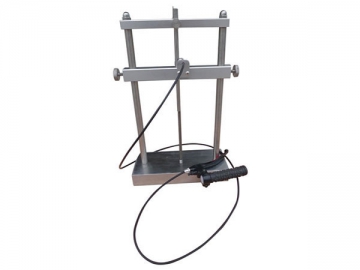

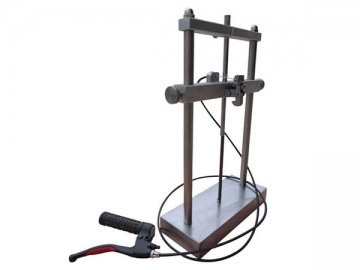

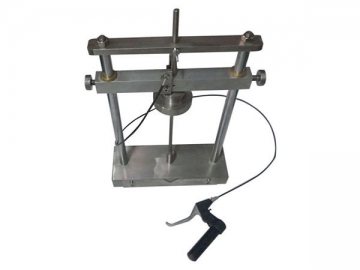

Low Temperature Impact Test Apparatus HC9926

Low Temperature Impact Test Apparatus HC9926
Low Temperature Impact Test Apparatus HC9926
Low Temperature Impact Test Apparatus HC9926
Low Temperature Impact Test Apparatus HC9926
Low Temperature Impact Test Apparatus HC9926
Low Temperature Impact Test Apparatus HC9926
Request a Quote

Standard
IEC 60884-1 2013 clause 24.4, 30.4, IEC60811-1-4, VDE0620 and so on

Application
This device is use for measuring the impact resistance of electrical accessories at low temperatures, as well as wires and cables.

Test Sample
Electrical accessories, surface type mounting boxes, screw glands, covers, wires and cables etc.

Feature
This device should be used with a low temperature chamber, the device should be placed on the sponge rubber pad about 40mm thick, and should be put in the low temperature chamber before and during the test.

Parameters
Model Impact test apparatus H926 Impact test apparatus H926A
Station Single station Three stations
Weight of the impact hammer (g) 1000±2 and 100±1 100, 200, 300, 400, 500, 600, 750, 1000, 1250, 1500(See table 1 and 2)
Height of the impact (mm) 100 100

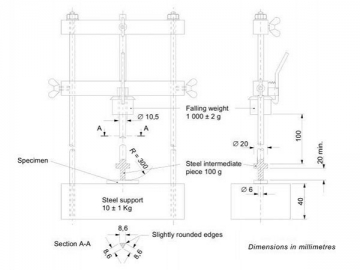

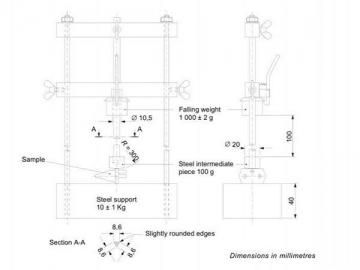

Steel intermediate piece Φ20, bottom end rounded R300, 100g Φ20, bottom end rounded R300, 100g
Standard IEC60884-1 24.4 Figure 27 IEC60884-1 30.4 Figure 42 IEC60811-1-4
Operation Manual, mechanical release Manual, mechanical release
Table1
For power cables for fixed installation, the mass of the hammer for testing the samples shall be as given in the following table
Overall diameter (mm) Mass of hammer (g)
Above Up to and including
- 4.0 100
4.0 6.0 200
6.0 9.0 300
9.0 12.5 400
12.5 20.0 500
20.0 30.0 750
30.0 50.0 1000
50.0 75.0 1250
75.0 - 1500
Table 2
For flexible cables and cords and telecommunication cables, the mass of the hammer for testing the sample shall be as follows
Overall diameter (mm) Mass of hammer (g)
Above Up to and including
For flat cords 100
- 6.0 100
6.0 10.0 200
10.0 15.0 300
15.0 25.0 400
25.0 35.0 500
35.0 - 600
