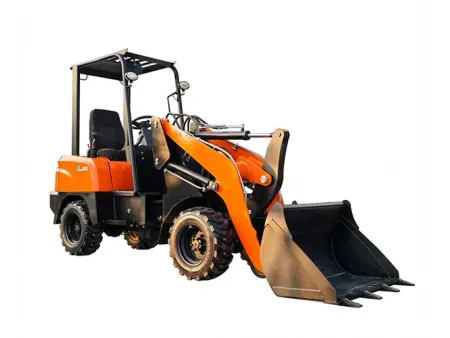

E20/25 Electric Wheel Loader
Request a Quote
Compact front end loader ideal for construction, logistics, and agricultural applications
- Rated load
1200-1500kg - Rated bucket capacity
0.5-0.6m³ - Operating weight
3200-3500kg - Dump height
3000-3300mm
The E20/25 electric wheel loader features an auxiliary hydraulic system at the front of the lift arm, equipped with protected piping for the 3rd and 4th control circuits, overflow line, and unpressurized return line (configuration may vary by model). This thoughtful design is rarely seen in compact wheel loaders but effectively reduces wear and extends service life, ensuring long-term operational reliability.
Specifications
| Model | ||
| Rated load | 1200kg | 1500kg |
| Rated bucket capacity | 0.5m³ | 0.6m³ |
| Operating weight | 3200kg | 3500kg |
| Dump height | 3000mm | 3300mm |
| Min. turning radius | 2800mm | 2800mm |
| Battery capacity | 31.6kWh | 31.6kWh |
| Dimensions (L×W×H) | 4550×1550×2160mm | 4780×1550×2160mm |
Features
- Certified with CE quality standards, ensuring compliance with international safety and performance requirements.

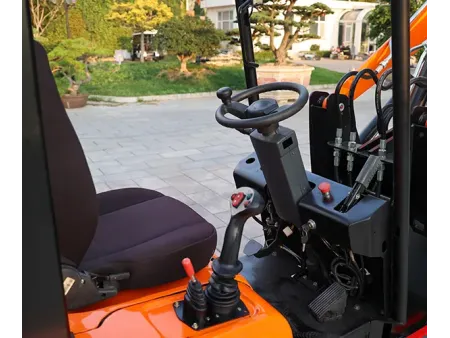

- A digital display screen allows operators to monitor battery charge status, remaining operation or charging time, speed, and average energy consumption in real time.
Applications
