Push Around Scissor Lift

Request a Quote

View All: http://aerialwork-platform.com/1-1-5-push-around-scissor-lift.html

SJY Aerial Work Platform

Mobile elevating work platform with 320/500kg capacity, up to 13800mm platform height

Compact and portable aerial work platform designed for vertical lifting tasks, the push around scissor lift is composed of seven key components: a lifting platform, scissor lift arms, lift cylinders, hydraulic control system, outriggers, base frame, and driving system. Unlike self-propelled lifts, these lifts are manually moved into position, making them lightweight and ideal for small to medium-scale indoor and outdoor operations. It is known for reliability, stability, and ease of use, making it ideal for a variety of high-altitude tasks.

320/500kg
13800mm

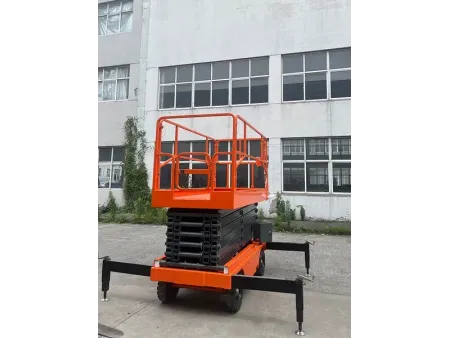

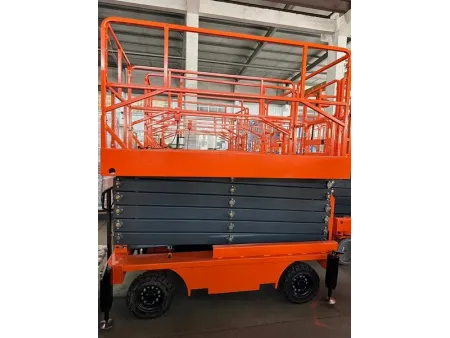

Photo Gallery

Specifications

Model Number	Unit	SJY0.5-6	SJY0.5-8	SJY0.5-10	SJY0.5-12	SJY0.5-14
Max. Platform Height	mm	6000	8000	10000	12000	13800
Min. Platform Height	mm	1050	1175	1300	1425	1439
Platform Size	mm	2270×1150	2270×1150	2270×1150	2270×1150	2640×1150
Rated Lift Capacity	kg	500	500	500	500	320
Outrigger Footprint Size	mm	2700×2200	2700×2200	2700×2200	2700×2200	2700×2350
Lifting Time	sec	50	50	80	80	80
Motor Power	kW	2.2	2.2	3	3	3
Voltage	V (DC)	24	24	24	24	24
Voltage	V (AC)	220	220	380	380	380
Overall Length	mm	2540	2540	2540	2540	2910
Overall Width	mm	1300	1300	1300	1300	1450
Overall Height (Guardrail Folded)	mm	1300	1855	1980	2105	2110
Overall Net Weight	kg	1280	1460	1870	2050	2840

Features

Folding guardrails reduce the overall size of the scissor lift, allowing it to pass through low-height spaces easily.
Eco-friendly non-marking tires leave no black marks or brake traces, ensuring a clean operating environment.
Designed with standard forklift pockets for easy and safe loading and transportation.
Emergency lowering valve allows the platform to be safely lowered in case of power loss or emergencies.
When in use, the outriggers enhance stability, making the aerial lift equipment more secure during operation.

Applications

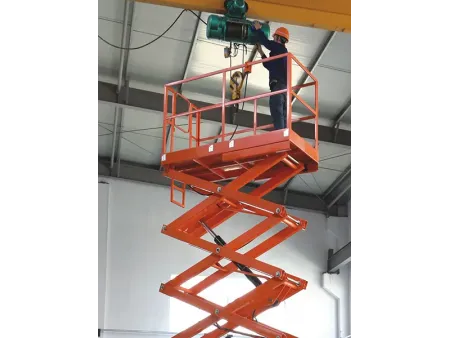

Push around scissor lifts are widely used for various industries such as warehouse logistics, pipelines installation and other building maintenance tasks, ceiling installation, high-altitude cable laying, and many more.

Main Options

Standard Features

Non-marking tires
Folding guardrails
Emergency lowering valve
Emergency stop button
Self-closing platform gate
Ladder

Optional Features

DC motor
Platform extension

Detail Features

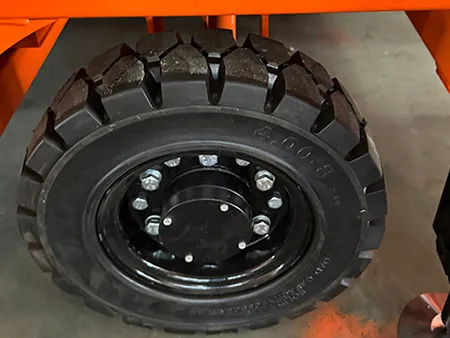

Non-marking tires

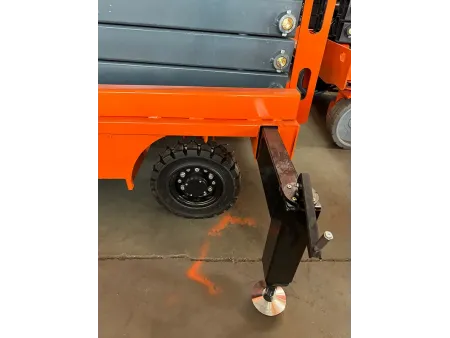

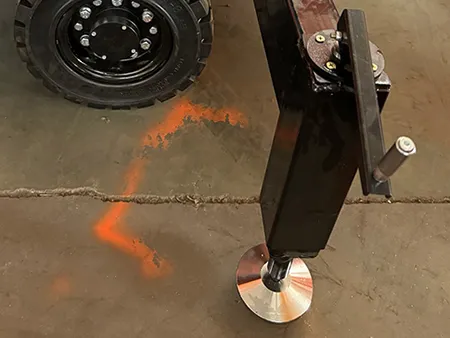

Removable outriggers
