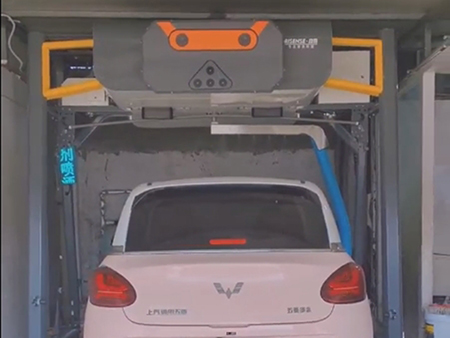

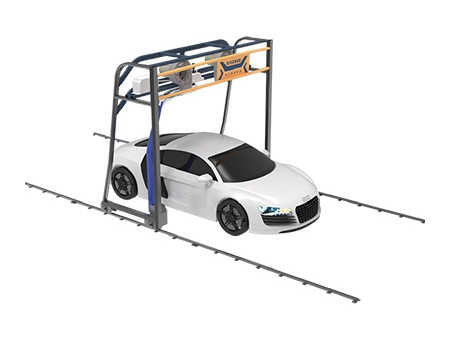

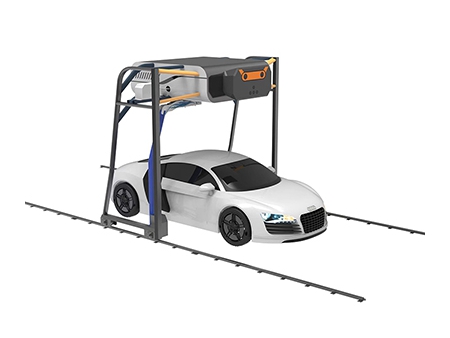

Single Arm Touchless Car Wash Machine HP-212
This single arm touchless car wash machine has a compact design, combining the frame and the arm structure into one unit. This ensures efficient car washing while taking up less space. The dimensions are 2.4m (L) x 3.1m (W) x 2.8m (H), making it suitable for small spaces and budget-conscious customers. The car washing system also features a reciprocating washing function for more thorough and even cleaning.
- Parameters
- Advantages
- Washing process
| Overall dimension | L*W*H: 2100*3100*2900mm Rail length: 8000mm |
| Installation size | L*W*H: 9000*3200*3000mm（excluding the equipment room） |
| Equipment room dimensions L*W*H: 2500*1600*2000mm | |
| Voltage | 3-phase, 380V, 50Hz |
| Power | Total power: 28kW Working power: 20.5 kW |
| Water pump pressure | 8MPa |
| Air source pressure | 0.6-0.7MPa |
| Available car to wash | Cars, vans, commercial vehicles (up to 7 seats) |
| Car washing size | L*W*H: 5300*2100*2100mm |
| Car wash capacity | Thorough washing: 6min/car |
| Water consumption | 330L/car |
| Power consumption | 0.85-0.95kWh/car |
| Shampoo consumption | 25-60ml/car |
| Wipe-free detergent shampoo consumption | 20-50ml/car |
| Wax consumption | 20-40ml/car |
| Intelligent Data | Daily car wash count on the operation screen Function checks on operation screen (e.g., high-pressure water, foam, wax) Operational status checks |
| Self-Diagnosis | Included |

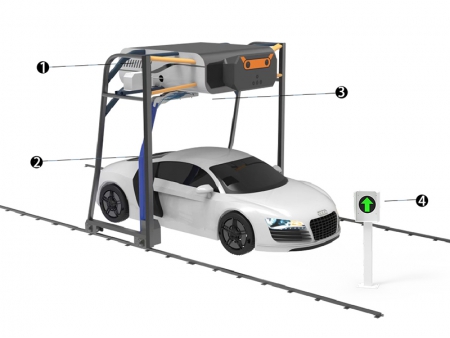

- Sleek design
With a streamlined appearance, the car wash machine is designed with an overhead air blower which features an enclosure made using color steel plate and with riveted connections. This allows for high durability. - 360-Degree high-pressure washing
Adopts a consistent speed, pressure, and distance washing method, automatically adjusting the wash distance based on the vehicle's length to eliminate cleaning blind spots. - Multiple spray nozzles
High-pressure water and touch-free liquid are efficiently utilized, maximizing functionality and efficiency. - Red-green indicator lights
Simple red-green lights indicate when the wash is complete and the vehicle can leave. - Corrosion-resistant welded galvanized frame
The frame uses Q235 international standard steel, 3mm thick, with hot-dip galvanizing for strong corrosion resistance, meeting SGS salt spray test level 10. - HD touchscreen
The touchscreen displays wash modes and steps in high definition, allowing for easy selection and operation, even for first-time users. - Unmanned operation
The car washing system supports QR code scanning for start-up, enabling unattended car washes and 24/7 operation
- Undercarriage spray cleaning
- Touch-free car wash liquid
- Single arm high-pressure water spray
- High-foam car wash liquid spray
- Single arm high-pressure water spray
- Air drying
-

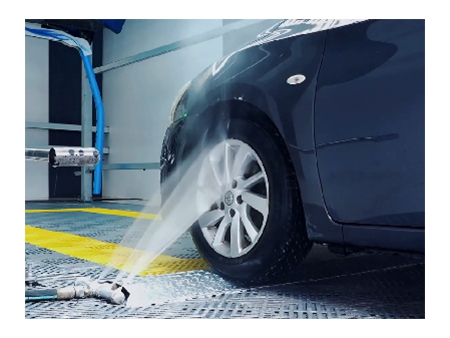

Underbody spray cleaning
Uses 35-70kg high-pressure water to clean wheels, lower sides, and chassis. Includes two sets of side sprays for wheels and skirts, and one set of forward sprays for the chassis.
-

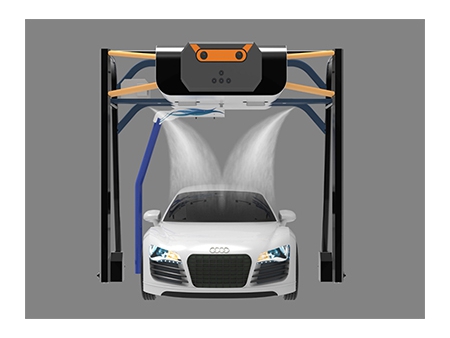

Touch-free car wash liquid
A reciprocating process (the car wash machine moves from the rear of the vehicle to the front, then from the front back to the rear, constituting one reciprocation). During this process, the arm sprays touch-free car wash liquid to activate and loosen dirt. After spraying, the equipment will pause for 15 seconds to allow the touch-free car wash liquid to react.
-

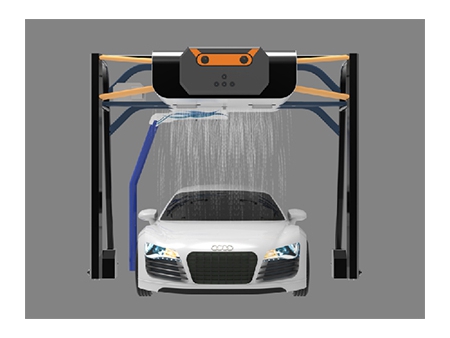

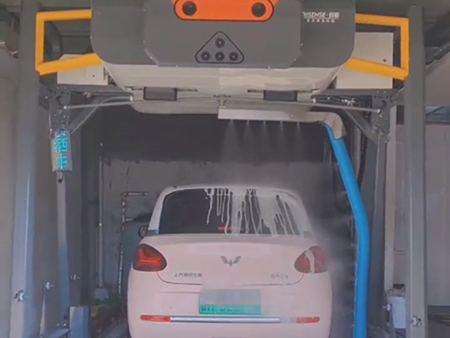

Single arm high-pressure water spray
"7" shaped spray bar ensures uniform pressure and distance for thorough cleaning, especially around the front, rear, and mirrors.
-

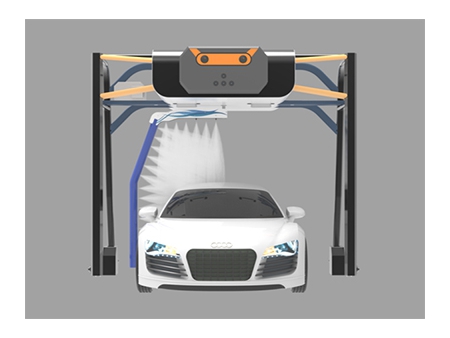

High-foam car wash liquid spray
The machine sprays high-foam liquid in a reciprocating manner, covering the entire vehicle to further remove loosened dirt, preparing for touch-free cleaning with dense foam.
-
Wax coating
The gloss water wax provides hydrophobic properties, protects the paint, and enhances the vehicle's shine post-wash.
-

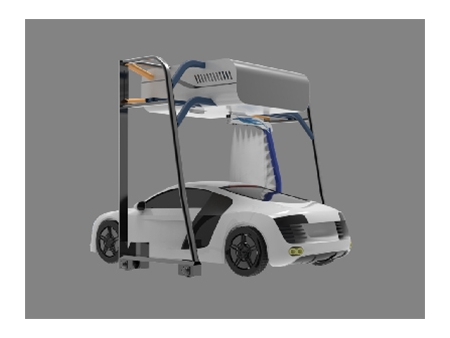

Air drying
Equipped with two oscillating top blowers for quick and efficient drying, reducing labor costs and improving wash efficiency.
