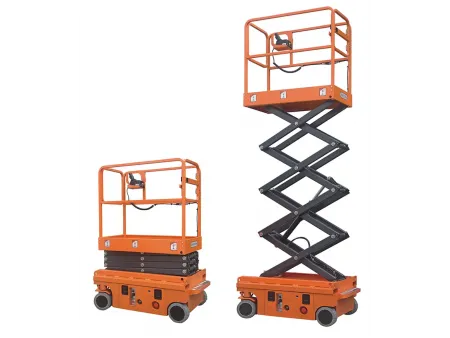

Mini Electric Scissor Lift, XEM-MINI Series
Mantall XEM-MINI series electric scissor lift is a type of aerial work platform that enables operators to easily maneuver around tight indoor and outdoor worksites without ladders and scaffolding. Characterized by lightweight and high mobility, the scissor lift fits into most elevators or passes through standard doorways. Our mini electric scissor lifts are also ideal for easy accessibility in multi-story buildings.
Our mini electric scissor lift is designed for cleansing, decorating and stocking the shelves in small buildings. It offers the maximum platform height of 4m and a maximum work height of 6m. With a 2-person, 240kg capabity, the scissor lift weighs only 480kg. XEM-MINI series electric scissor lift is equipped with all-electric and complete security systems. Operators can do their jobs safely and environmentally friendly.
- Charger indicator
- Platform self-locked door
- Level indicator
- Security overhaul rod
- Emergency lowering system
- Emergency stop button
- Dual front wheel brake
- Forklift pockets
- Non-mark brake tires
- Charge protection system
- AC power to platform
- Buzzer
- Flash light
| Model | XEM-50MINI | XEM-60MINI |
| Working height max H1 | 5 m | 6 m |
| Platform height max H2 | 3 m | 4 m |
| Lifting capacity | 240 kg | |
| Dimension of the platform B*C*A | 1.15X0.76X1.1 m | |
| Platform skirting board height L | 0.15 m | |
| Overall length and width E*F | 1.37X0.76 m | |
| Height stowed D | 1.85 m | 1.94 m |
| Wheelbase G | 1.07 m | |
| Ground clearance H | 0.06 m | |
| Tilt sensor-front to back | 2° | |
| Tilt sensor-side to side | 1° | |
| Raising time/Lowering time | 28/24 s | 35/18 s |
| Hydraulic tank capacity | 2 L | |
| Non-marking tires | 150mm | |
| Max. platform occupancy | 2 pers | |
| Power source | 12V/100AH | |
| Weight | 480 kg | 550 kg |
