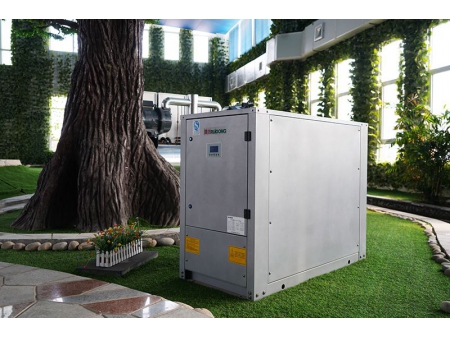

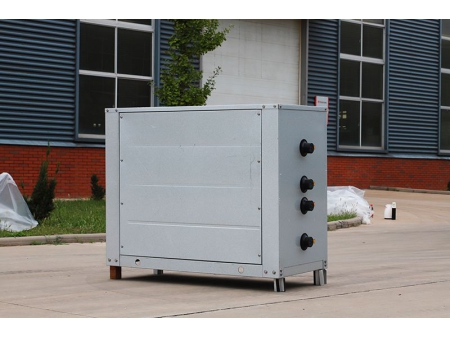

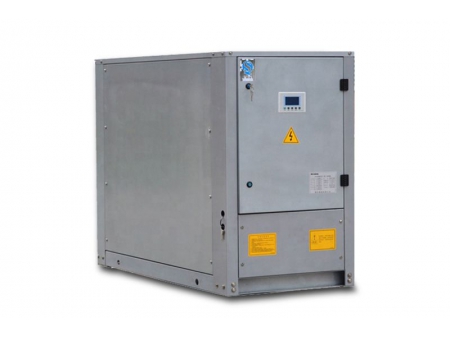

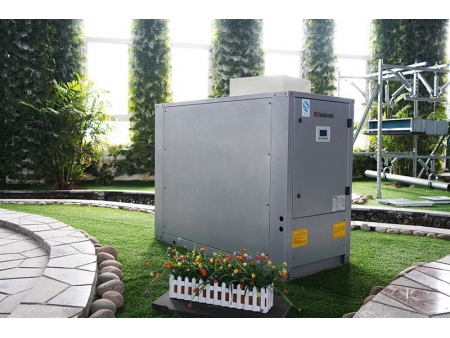

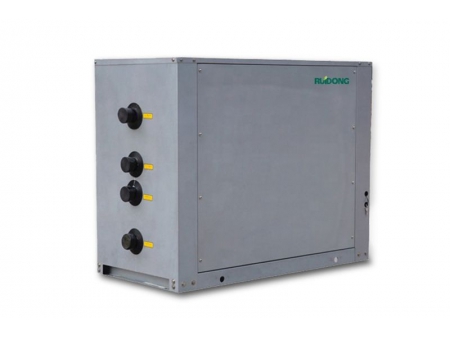

Mini Type Water Cooled Scroll Chiller, 7kW-40kW
Request a Quote
The water cooled chiller can be equipped with one to four scroll compressors according to the actual applications. Paired with high-efficiency shell and tube/plate condenser, evaporator and control system, this water cooled chilling unit is suitable for central air-conditioning systems in the general houses ,villas, small restaurants, shops, hotels, office and commercial buildings.
Download
Video
Technical Parameters
| Model RLSW - (C) R | 7 | 10 | 12 | 15 | 18 | 12 | 15 | 18 | 20 | 28 | 30 | 35 | 40 | ||
| Power supply | 220V/50HZ | 380V/50HZ | |||||||||||||
| Compressor Qty | 1 | ||||||||||||||
| Normal cooling capacity | kW | 8.3 | 10.3 | 12.2 | 15.2 | / | 12.2 | 15.2 | 18 | 19.5 | 27.7 | 29.7 | 34.3 | 40.4 | |
| Input power of cooling | kW | 2 | 2 | 2.8 | 2.8 | / | 2.5 | 2.9 | 3.3 | 3.5 | 5 | 5.4 | 6.6 | 7.2 | |
| Normal heating capacity | kW | 9.4 | 12.4 | 14.2 | 17.8 | / | 12.4 | 17.8 | 20.1 | 21.4 | 29.7 | 31.7 | 38.3 | 45.1 | |
| Input power of heating | kW | 2.7 | 2.7 | 3.7 | 3.7 | / | 3.4 | 3.9 | 4.5 | 4.7 | 6.8 | 7.3 | 8.4 | 9.8 | |
| Max. running current | A | 15.5 | 15.5 | 24.1 | 24.1 | / | 8 | 9.1 | 10.2 | 10.9 | 15.7 | 17 | 20 | 22.5 | |
| Cable diameter (Copper wire distance≤20meters) | mm2 | 2*4 | 2*4 | 2*4 | 2*4 | / | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | |
| Compressor type | Hermetic scroll | ||||||||||||||
| Starting mode | Direct | ||||||||||||||
| Refrigerant | R410A | ||||||||||||||
| Refrigerant charge | kg | 1.8 | 1.8 | 4.5 | 4.5 | / | 4.5 | 4.5 | 4.5 | 5 | 6 | 6 | 6.5 | 6.5 | |
| Refrigerant control device | Thermostatic expansion valve | ||||||||||||||
| Evaporator | Type | Plate type | Tube in tube type | ||||||||||||
| Water pressure drop | kPa | 70 | |||||||||||||
| Water pipe Dia. | DN | 25 | 25 | 50 | 50 | / | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Connection | Threaded connection | ||||||||||||||
| Chilled water flow | m3/h | 1.4 | 1.8 | 2.1 | 2.6 | / | 2.1 | 2.6 | 3.1 | 3.4 | 4.8 | 5.1 | 5.9 | 6.9 | |
| Well water flow | m3/h | 0.9 | 1.1 | 1.3 | 1.6 | / | 1.3 | 1.6 | 1.9 | 2.0 | 2.9 | 3.1 | 3.5 | 4.2 | |
| Condenser type | Type | Plate type | Tube in tube type | ||||||||||||
| Water pressure drop | kPa | 70 | |||||||||||||
| Water pipe Dia. | DN | 25 | 25 | 50 | 50 | / | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Well water flow | m3/h | 0.9 | 1.1 | 1.3 | 1.6 | / | 1.3 | 1.6 | 1.9 | 2.0 | 2.9 | 3.1 | 3.5 | 4.2 | |
| Hot water flow | m3/h | 1.4 | 1.8 | 2.1 | 2.6 | / | 2.1 | 2.6 | 3.1 | 3.4 | 4.8 | 5.1 | 5.9 | 6.9 | |
| Dimensions | L | 1000 | 1000 | 1400 | 1400 | / | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| W | 610 | 610 | 655 | 655 | / | 655 | 655 | 655 | 655 | 655 | 655 | 655 | 655 | ||
| H | 730 | 730 | 1100 | 1100 | / | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | ||
| Net weight | kg | 100 | 100 | 210 | 210 | / | 210 | 235 | 235 | 235 | 235 | 270 | 270 | 285 | |
| Running weight | kg | 120 | 120 | 248 | 248 | / | 248 | 280 | 280 | 280 | 280 | 325 | 325 | 340 | |
| Noise | dB(A) | 62 | 62 | 62 | 62 | / | 62 | 62 | 62 | 62 | 70 | 70 | 72 | 72 | |
| Main protection measures | 1. High & low voltage protection; 2. Anti-freeze protection; 3. Temperature control; 4. Reverse phase and phase loss protection; | ||||||||||||||
| 5. High & low pressure protection; 6. High pressure exhaust temperature protection; 7. Built-in motor overheating protection; | |||||||||||||||
| 8. Over-current protection; 9. Safety valve; 10. Check valve; | |||||||||||||||
| Remarks: | Cooling conditions | User side inlet/outlet water temperature: 12℃/7℃; ground water inlet/outlet water temperature: 18℃/29℃; | |||||||||||||
| Heating conditions | User side inlet/outlet water temperature: 40℃/--℃; ground water inlet/outlet water temperature: 15℃/--℃; | ||||||||||||||
| Model RLSW - (C) R | 7 | 10 | 12 | 15 | 18 | 12 | 15 | 18 | 20 | 28 | 30 | 35 | 40 | ||
| Power supply | 220V/50HZ | 380V/50HZ | |||||||||||||
| Compressor Qty | 1 | ||||||||||||||
| Normal cooling capacity | kW | 8.3 | 10.3 | 12.2 | 15.2 | / | 12.2 | 15.2 | 18 | 19.5 | 27.7 | 29.7 | 34.3 | 40.4 | |
| Input power of cooling | kW | 2 | 2.5 | 2.8 | 3.5 | / | 2.5 | 2.9 | 3.3 | 3.5 | 5 | 5.4 | 6.6 | 7.2 | |
| Normal heating capacity | kW | 9.4 | 12.4 | 14.2 | 17.8 | / | 12.4 | 17.8 | 20.1 | 21.4 | 29.7 | 31.7 | 38.3 | 45.1 | |
| Input power of heating | kW | 2.7 | 3.6 | 3.7 | 4.6 | / | 3.4 | 3.9 | 4.5 | 4.7 | 6.8 | 7.3 | 8.4 | 9.8 | |
| Max. running current | A | 15.5 | 15.5 | 24.1 | 24.1 | / | 8 | 9.1 | 10.2 | 10.9 | 15.7 | 17 | 20 | 22.5 | |
| Cable diameter (Copper wire distance≤20meters) | mm2 | 2*4 | 2*4 | 2*4 | 2*4 | / | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | |
| Compressor type | Hermetic scroll | ||||||||||||||
| Starting mode | Direct | ||||||||||||||
| Refrigerant | R410A | ||||||||||||||
| Refrigerant charge | kg | 1.8 | 1.8 | 4.5 | 4.5 | / | 4.5 | 4.5 | 4.5 | 5 | 6 | 6 | 6.5 | 6.5 | |
| Refrigerant control device | Thermostatic expansion valve | ||||||||||||||
| Evaporator | Type | Plate type | Tube in tube type | ||||||||||||
| Water pressure drop | kPa | 70 | |||||||||||||
| Water pipe Dia. | DN | 25 | 25 | 50 | 50 | / | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Connection | Threaded connection | ||||||||||||||
| Chilled water flow | m3/h | 1.4 | 1.8 | 2.1 | 2.6 | / | 2.1 | 2.6 | 3.1 | 3.4 | 4.8 | 5.1 | 5.9 | 6.9 | |
| Well water flow | m3/h | 1.9 | 2.3 | 2.8 | 3.5 | / | 2.8 | 3.5 | 4.1 | 4.4 | 6.3 | 6.7 | 7.8 | 9.2 | |
| Condenser type | Type | Plate type | Tube in tube type | ||||||||||||
| Water pressure drop | kPa | 70 | |||||||||||||
| Water pipe Dia. | DN | 25 | 25 | 50 | 50 | / | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Well water flow | m3/h | 1.9 | 2.3 | 2.8 | 3.5 | / | 2.8 | 3.5 | 4.1 | 4.4 | 6.3 | 6.7 | 7.8 | 9.2 | |
| Hot water flow | m3/h | 1.4 | 1.8 | 2.1 | 2.6 | / | 2.1 | 2.6 | 3.1 | 3.4 | 4.8 | 5.1 | 5.9 | 6.9 | |
| Dimensions | L | 1000 | 1000 | 1400 | 1400 | / | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| W | 610 | 610 | 655 | 655 | / | 655 | 655 | 655 | 655 | 655 | 655 | 655 | 655 | ||
| H | 730 | 730 | 1100 | 1100 | / | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | ||
| Net weight | kg | 100 | 100 | 210 | 210 | / | 210 | 235 | 235 | 235 | 235 | 270 | 270 | 285 | |
| Running weight | kg | 120 | 120 | 248 | 248 | / | 248 | 280 | 280 | 280 | 280 | 325 | 325 | 340 | |
| Noise | dB(A) | 62 | 62 | 62 | 62 | / | 62 | 62 | 62 | 62 | 70 | 70 | 72 | 72 | |
| Main protection measures | 1. High & low voltage protection; 2. Anti-freeze protection; 3. Temperature control; 4. Reverse phase and phase loss protection; | ||||||||||||||
| 5. High & low pressure protection; 6. High pressure exhaust temperature protection; 7. Built-in motor overheating protection; | |||||||||||||||
| 8. Over-current protection; 9. Safety valve; 10. Check valve; | |||||||||||||||
| Remarks | Cooling conditions | User side inlet/outlet water temperature: 12℃/7℃; ground water inlet/outlet water temperature: 25℃/29℃; | |||||||||||||
| Heating conditions | User side inlet/outlet water temperature: 40℃/--℃; ground water inlet/outlet water temperature: 10℃/--℃; | ||||||||||||||
| Model RLSW - (C) R | 7 | 10 | 12 | 15 | 18 | 12 | 15 | 18 | 20 | 28 | 30 | 35 | 40 | ||
| Power supply | 220V/50HZ | 380V/50HZ | |||||||||||||
| Compressor Qty | 1 | ||||||||||||||
| Normal cooling capacity | kW | 7.9 | 9.8 | 11.5 | 14.5 | / | 11.5 | 14.5 | 17.2 | 18.6 | 26.5 | 28.7 | 33.5 | 38.5 | |
| Input power of cooling | kW | 2.1 | 2.1 | 3 | 3 | / | 2.7 | 3.1 | 3.6 | 3.9 | 5.5 | 5.9 | 7 | 7.9 | |
| Max. running current | A | 15.5 | 15.5 | 24.1 | 24.1 | / | 8 | 9.1 | 10.2 | 10.9 | 15.7 | 17 | 20 | 22.5 | |
| Cable diameter (Copper wire distance≤20meters) | mm2 | 2*4 | 2*4 | 2*4 | 2*4 | / | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | 3*4 2*2.5 | |
| Compressor type | Hermetic scroll | ||||||||||||||
| Starting mode | Direct | ||||||||||||||
| Refrigerant | R410A | ||||||||||||||
| Refrigerant charge | kg | 1.8 | 1.8 | 4.5 | 4.5 | / | 4.5 | 4.5 | 4.5 | 5 | 6 | 6 | 6.5 | 6.5 | |
| Refrigerant control device | Thermostatic expansion valve | ||||||||||||||
| Evaporator | Type | Tube in tube type | Shell and tube type | ||||||||||||
| Water pressure drop | kPa | 70 | |||||||||||||
| Water pipe Dia. | DN | 25 | 25 | 50 | 50 | / | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Connection | Threaded connection | ||||||||||||||
| Well water flow | m3/h | 1.4 | 1.7 | 2 | 2.5 | / | 2 | 2.5 | 3 | 3.2 | 4.6 | 4.9 | 5.8 | 6.6 | |
| Condenser type | Type | Tube in tube type | Shell and tube type | ||||||||||||
| Water pressure drop | kPa | 70 | |||||||||||||
| Water pipe Dia. | DN | 25 | 25 | 50 | 50 | / | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Water flow | m3/h | 1.7 | 2.1 | 2.5 | 3.1 | / | 2.5 | 3.1 | 3.7 | 4.0 | 5.7 | 6.2 | 7.2 | 8.3 | |
| Unit type | Horizontal | ||||||||||||||
| Dimensions | L | 1000 | 1000 | 1400 | 1400 | / | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| W | 610 | 610 | 655 | 655 | / | 655 | 655 | 655 | 655 | 655 | 655 | 655 | 655 | ||
| H | 730 | 730 | 1100 | 1100 | / | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | ||
| Net weight | kg | 100 | 100 | 210 | 210 | / | 210 | 235 | 235 | 235 | 235 | 270 | 270 | 285 | |
| Running weight | kg | 120 | 120 | 248 | 248 | / | 248 | 280 | 280 | 280 | 280 | 325 | 325 | 340 | |
| Noise | dB(A) | 62 | 62 | 62 | 62 | / | 62 | 62 | 62 | 62 | 70 | 70 | 72 | 72 | |
| Main protection measures | 1. High & low voltage protection; 2. Anti-freeze protection; 3. Temperature control; 4. Reverse phase and phase loss protection; | ||||||||||||||
| 5. High & low pressure protection; 6. High pressure exhaust temperature protection; 7. Built-in motor overheating protection; | |||||||||||||||
| 8. Over-current protection; 9. Safety valve; 10. Check valve; | |||||||||||||||
| Remarks | Cooling conditions | User side inlet/outlet water temperature: 12℃/7℃; cooling water inlet/outlet water temperature: 30℃/35℃; | |||||||||||||
Features
- Compressor characteristics and components The scroll compressor has great liquid slugging protection. After installing the oil heating device, it can effectively prevent the machine failure caused by insufficient oil-fluorine separation during operation.
- High-efficiency shell and tube/plate evaporator and condenser allow for high heat exchange efficiency.
- Control system With overheating protection and power supply protection, the microcomputer controller adopts wide-temperature electrical components from well-known brands. This enables it to operate reliably at an ambient temperature of-15°C to 65°C. The control system features high levels of automation. In addition, remote control is realized because of RS-232 and RS-485 standard communication interfaces.
- Control method Microcomputer control features:
(1) Water chilling unit controlled by the chilled water return or outlet temperature
(2) When the load reaches the set value of the chilling unit, automatic start or stop will be performed.
(3) LCD display screen
(4) Inlet and return water temperature clearly displayed on the LCD screen, and the compressor's running hours can be set.
(5) Remote control signals for start and stop can be accepted. - Safety protection devices Safety valve;High and low voltage switch; Anti-freeze protection; Oil heater; Temperature control ; Pressure gauge; Overload protector; Surge protector
- Optional accessories Built-in hydraulic module or separate hydraulic module
