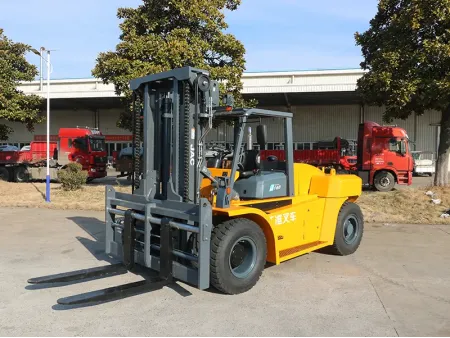

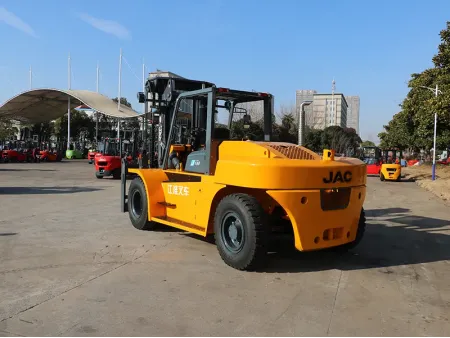

Diesel Forklift (16T Forklift Truck, J Series)
J Series 16T heavy-duty internal combustion forklift – a newly developed heavy-duty forklift with a modern industrial design. Engineered for superior load stability and robust performance, it delivers low fuel consumption, smooth and comfortable operation, exceptional adaptability, and simplified maintenance. The forklift truck is ideally suited for demanding environments such as ports, stone and heavy machinery industries, cable handling, and rental logistics.
Parameters of Diesel Forklift| Model | Unit | CPCD160J | |
| Rated lifting capacity | kg | 16000 | |
| Load center distance | mm | 600 | |
| Max. lifting height | mm | 3000 | |
| Fork size | Length×Width×Thickness | mm | 1520×200×85 |
| Minimum turning radius | mm | 4860 | |
| Max. travel speed | Unloaded | km/h | 32 |
| Loaded | km/h | 28 | |
| Max. lift speed | Unloaded | mm/s | 380 |
| Loaded | km/h | 300 | |
| Max. traction (loaded) | kN | 132 | |
| Max. gradeability | % | 15 | |
| Wheelbase | mm | 3250 | |
| Tire | Front | mm | 12.00-20-20PR |
| Rear | mm | 12.00-20-20PR | |
| Mast lowered height | mm | 3235 | |
| Overall length | mm | 4900 | |
| Overall width | mm | 2650 | |
| Total weight | kg | 20000 | |
Features
Professional appearance design: modular and standardized design, high product recognition, simple and smooth shape with industrial aesthetics. Key components are from well-known domestic and foreign brands, reliable and durable.
Equipped with Yuchai National IV 129kW six-cylinder engine and BOSCH high-pressure common rail, featuring powerful performance, stable output, mature platform, low fuel consumption and easy maintenance.
Safe and Reliable- Sliding Counterbalanced Design: Allows 30 cm of forward and backward movement, increasing load-bearing capacity by 15% and greatly enhancing overall stability.
- Electromagnetic Control: One-touch operation for greater convenience and efficiency.
- Meritor 16-ton Heavy-duty Drive Axle: Delivers exceptional load capacity with stable and reliable performance.
- Caliper Brakes with Large-Bore Brake Lines: Designed to withstand continuous, high-intensity, short-distance, and frequent braking operations.
Standard YQXD150Q Electro-Hydraulic Power-Shift Transmission: Delivers smooth gear shifting, easy operation, and convenient maintenance.
Premium Seat with OPS Lowering Lock: Enhances operator safety and comfort.
LED Display with Rearview Camera: The large LCD screen integrates real-time rearview imaging for safer operation, making the vehicle smarter and more user-friendly.
12.00-20-20PR Heavy-Duty Industrial Tires: Engineered for excellent wear resistance, providing superior load capacity and enhanced driving comfort.
One-Piece Stamped Fully-Enclosed Overhead Guard: High-strength structure ensures superior safety and reliable operation even in rainy conditions.
Load-Sensing Hydraulic System: Features independent heat dissipation, improving operating efficiency by 10%.
Three-Layer Parallel Composite Cooling Design: Ensures smooth airflow and superior heat dissipation performance.
Vehicle-Grade LED Lighting: Provides high brightness and long service life for reliable operation in all conditions.
Standard Hydraulic Fork Positioner: Allows easy fork adjustment; combined with a wide-visibility mast and automotive-grade rearview mirrors for exceptional visibility and enhanced safety.
