Winch Rope
Request a Quote
Application

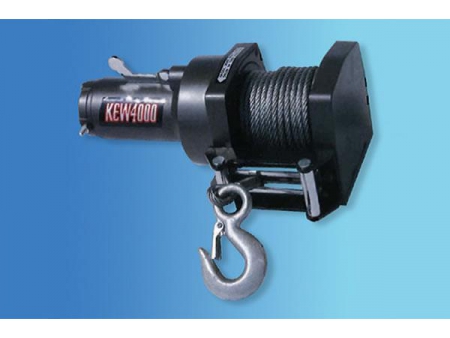

Steel wire rope for winches is designed for winch units on automobiles and marine applications. The cable is high strength and is capable of heavy duty operation.
Characteristic
1. Compact spooling and high flexibility well preformed.
2. High tensile strength and small diameter tolerance
Product Structure
- 7×19
- 7×19W
- 6×31SW-IWRC
| 6×25Fi IWR 6×29Fi IWR 6×31SW IWR 6×36SW IWR 8×25Fi IWR 8×29Fi IWR 8×31SW IWR 8×36SW IWR | ||
| Nominal Dia. (mm) | Min. Breaking Strength(N) | Approximate Weight (kg/100m) |
| 8.2 | 63 | 30 |
| 8.4 | 65 | 31.5 |
| 8.6 | 67 | 32.8 |
| 9 | 72 | 35 |
| 9.2 | 78 | 37.8 |
| 9.5 | 82 | 40.2 |
| 10 | 88 | 44.5 |
| 10.5 | 96 | 47.4 |
| 11 | 104 | 52 |
| 11.5 | 108 | 56.9 |
| 12 | 112 | 61.8 |
| 13 | 120 | 72.5 |
| 14 | 125 | 84.1 |
| 7×19 8×19-IWR | ||
| Nominal Dia. (mm) | Min. Breaking Strength(N) | Approximate Weight (kg/100m) |
| 4 | 13.5 | 6.4 |
| 4.3 | 15.9 | 7.5 |
| 4.5 | 17.9 | 8.4 |
| 4.8 | 20.4 | 9.5 |
| 5 | 22.2 | 10.3 |
| 5.4 | 24.3 | 11.4 |
| 5.7 | 27.1 | 12.7 |
| 6 | 30 | 14.4 |
| 6.1 | 31.6 | 14.9 |
| 7.2 | 41.8 | 20.4 |
| 7.5 | 45.3 | 22 |
| 7.8 | 49.4 | 24 |
| 8.1 | 53.3 | 26 |
| 9.2 | 67.7 | 33.4 |
| 10.3 | 81.8 | 41.8 |
| 7×19W | |||||
| Nominal Diameter | Nominal Tensile Strength, Mpa | Approximate Weight (kg/100m) | |||
| 1960 | 2060 | 2160 | 2260 | ||
| mm | Minimum Breaking Force (kN) | ||||
| 4 | 13 | 13.7 | 14.3 | 15 | 6.9 |
| 4.8 | 18.8 | 19.7 | 20.7 | 21.7 | 9.9 |
| 5.4 | 23.6 | 24.8 | 26 | 27.2 | 12.9 |
| 6 | 30 | 31.5 | 33 | 34.6 | 15.9 |
| 6.4 | 33.3 | 35 | 36.7 | 38.4 | 18.1 |
| 7.2 | 41.1 | 43.2 | 45.3 | 47.4 | 22.5 |
| 8 | 51.8 | 54.4 | 57.1 | 59.7 | 27 |
| 8.1 | 53 | 55.5 | 58.1 | 61 | 28.2 |
| 8.3 | 55.5 | 58.3 | 61.2 | 64 | 29.6 |
| 8.6 | 59.5 | 62.5 | 65.5 | 68.6 | 32.5 |
| 9.2 | 67.3 | 70.8 | 74.2 | 77.7 | 36.2 |
| 9.5 | 72.6 | 76.3 | 80 | 83.8 | 37.5 |
| 10 | 82.7 | 86.9 | 91.1 | 95.4 | 41.6 |
| 11 | 95.7 | 100.5 | 105.4 | 110.3 | 51.5 |
| 12 | 116.9 | 122.8 | 128.8 | 134.8 | 59.9 |
