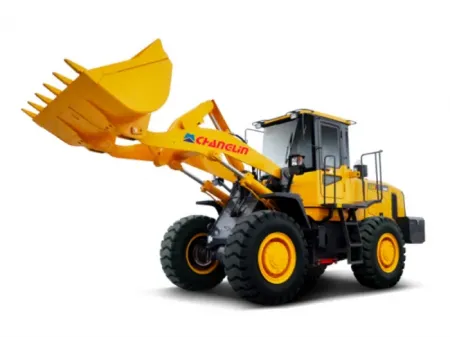

955T Wheel Loader
Request a Quote
- The 955T wheel loader is installed with Weichai engine
- Two forward and one reverse power shift transmissions are installed.
- Combined sealing cylinder brings good sealing performance and reliability.
Consulting Products Information
Technical Specification of Wheel Loader:
Model | 955T |
Length×Width×Height(mm) | 8020×2800×3450 |
Rated load (Kg) | 5000 |
Rated bucket capacity(m3) | 3.0 |
Operating weight(Kg) | 16500 |
Diesel engine | WEICHAI WD10G220E23 |
Rated output(KW) | 162 |
Transmission case | HANGCHI ZL50D |
Gear positions | 2 forward gear, 1 reverse gear |
Max. drawing force(KN) | 170 |
Max. dump clearance(mm) | 3136 |
Dump reach (mm) | 1171 |
Wheel base(mm) | 3100 |
Total cycle time (s) | 11.8 |
Gallery
- Images
- VR View

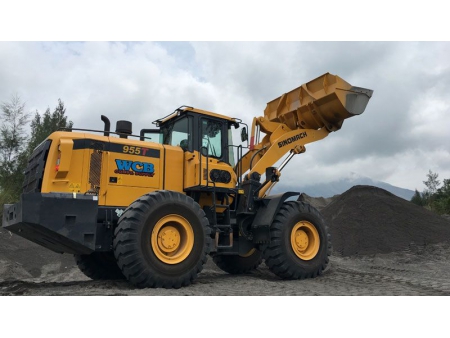

![](public/propic/4082/b_1-13-wheel-loader-955n_01b.jpg)

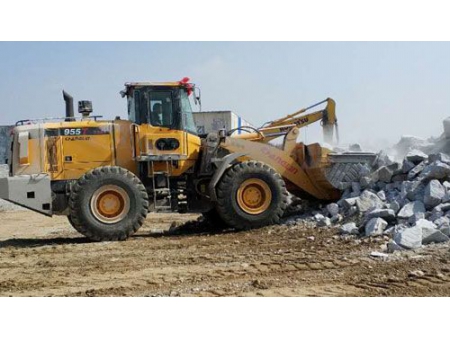

![](public/propic/4082/b_1-13-wheel-loader-955n_02b.jpg)

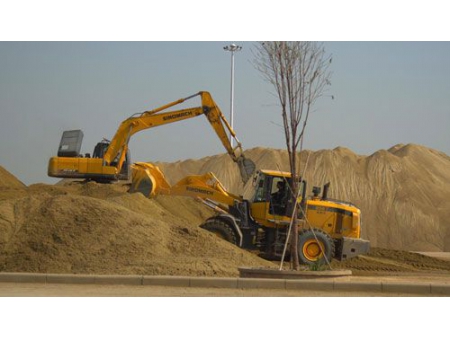

![](public/propic/4082/b_1-13-wheel-loader-955n_03b.jpg)

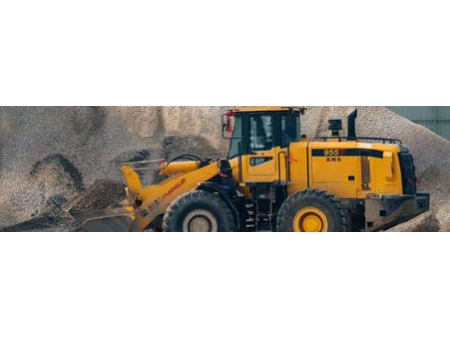

![](public/propic/4082/b_1-13-wheel-loader-955n_04b.jpg)

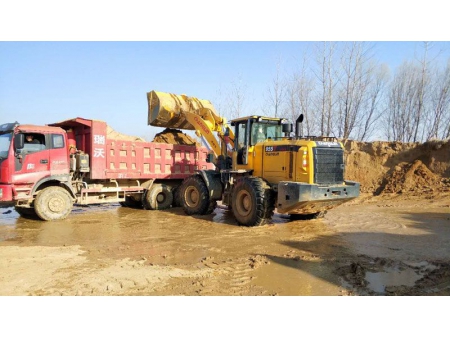

![](public/propic/4082/b_1-13-wheel-loader-955n_05b.jpg)

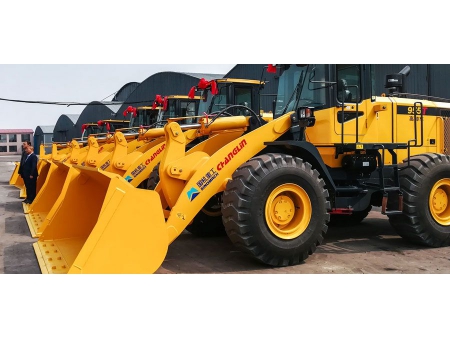

![](public/propic/4082/b_vr955t.jpg)
