JW8204A/S MPO/MTP Polarity Analyser

Polarity Testing

JW8204A/S

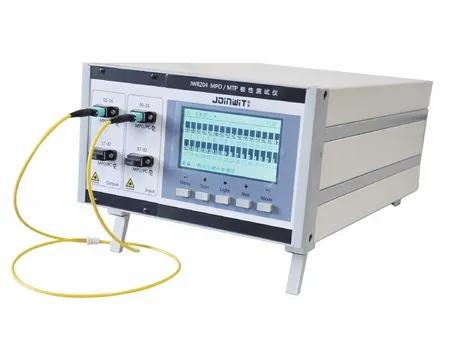

Fiber polarity tester for testing the polarity of MTP/MPO cable assemblies

This polarity analyser is designed to determine polarity and test cable assemblies during the production of MPO/MTP cables. With one-touch automatic scanning, it quickly indicates cable continuity, polarity (sequence), alarms, and error analysis. It provides a fast, accurate, and efficient polarity testing solution for MPO/MTP cable production, semi-finished product testing, and finished product inspection.

Features

Compatible with 12, 16, 24, 32, 36, 48-fibre, and other custom fiber cables
Supports fiber cores of 9/125, 50/125, and 62.5/125
One-touch operation with learning mode support
Error alarms and polarity error analysis
Supports pedal switch for data upload and foolproof protection features
Customizable polarity settings for smarter functionality

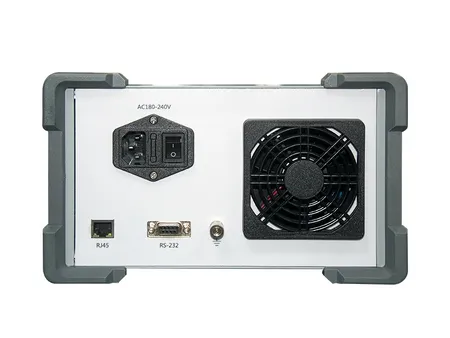

Equipped with RS232 communication interface and PC software application support
Upgraded color screen interface with multilingual support and replaceable MPO connector components (JW8204S)
JW8204S MPO/MTP polarity analyser uses a 1310nm laser and supports additional module integration

Specifications

JW8204A

JW8204S

Model	JW8204A	JW8204S
Number of Channel	Compatible 48 core or below	Compatible 48 core or above
Fiber Type	SMF: 9/125 MMF: 50/125, 62.5/125
Optical Output Interface	MPO/PC 12core male
Optical Receive Interface	MPO/PC 12core male
Test Time	＜ 1S (48core)
Communication Interface	RS232
Display	4.3inch TFT color screen
Operating Temperature	-5℃ to 40℃
Storage Temperature	-25℃ to 70℃
Power Supply	AC 220V 50Hz
Dimensions	3U×235×380mm	120×235×380mm
