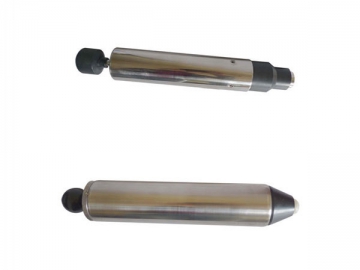

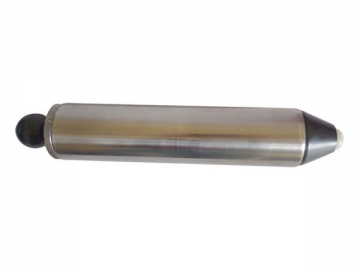

Spring Operated Impact Hammers

Spring Operated Impact Hammers
Spring Operated Impact Hammers
Spring Operated Impact Hammers
Request a Quote

Standard
IEC 60068-2-63, IEC 60068-2-75 test Ehb, IEC 60335-1, IEC 60598-1, IEC 60950, and IEC 60065

Application
This device is intended to test the impact resistance of shells, operating arms, handles, knobs, indicator lights and shades of electrical appliances.

Test Sample
Shell, operating arm, handle, knob, indicator lights and shades

Feature
1. The impact hammer is composed of three parts:
A. Shell includes housing, impact element guide and release mechanism.
B. Impact element. Hammer, hammer tail and firing handle.
C. Release cone.

2. Working principle
When pulling the operating handle, the release claw stops at the impact element release point, the hammer spring is pressed.

Parameters (mm)
Mode SH-1 SH-2 SH-5 SH-6
Impact energy(J) 0.14; or 0.2; 0.35; 0.5; 0.7; 1.0 2±0.1 0.2 and 0.35, 0.5, 0.7, 1 0.14 and 0.2, 0.35, 0.5, 0.7, 1
Impact element mass 250g±5g 500g±5g 250g±5g 250g±5g
Overall mass 1250g±10g 1500g±10g 1450g±10g 1450g±10g
Material Stainless steel Stainless steel Stainless steel Stainless steel
