MEMS 1xN Single Mode Optical Switch

MEMS 1xN Single Mode Optical Switch
MEMS 1xN Single Mode Optical Switch
Request a Quote

Cylindrical (1×33 to 1×64)

This MEMS 1xN single mode optical switch is an optical path control device with compact cylindrical package, and is applicable to be integrated into optical systems such as optical fiber communication systems and fiber optic sensors. Based on Micro-Electro-Mechanical System (MEMS) technology, the optical switch adopts a single MEMS mirror that can rotate to enable it to guide the optical signal with desired optical path. This MEMS 1xN single mode optical switch is provided with port configurations of 1×33 to 1×64, allowing channel selection between an input fiber and up to N output fibers.

Due to its compact size, low power consumption, and high durability, this MEMS 1xN single mode optical switch is well suited for usage in a wide range of applications such as fiber sensing and optical fiber communication.

Features
  • Cylindrical package, compact size
  • High reliability and durability
  • Fast switching speed
  • Telcordia GR-1073-CORE and RoHS compliant
Applications
  • Optical communication
  • Fiber sensing
  • Remote fiber monitoring (working with OTDR or OCM)
  • Optical network routing
  • Measurement resource sharing
  • Optical network protection and restoration

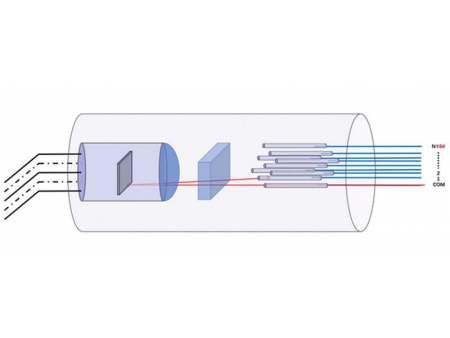

Schematic Diagram
Optical Specifications
PARAMETER UNIT VALUE
Wavelength nm 13:1290 ~ 1330 15:1525 ~ 1568 16:1600 ~ 1650
Test Wavelength nm 1310 / 1550 / 1625 or 1650
Insertion Loss 1 x 2 dB ≤ 0.6, typical 0.5
1 x 4 / 8 ≤ 0.8, typical 0.6
1 x 12 / 16 ≤ 1.0, typical 0.9
1 x 24 / 32 ≤ 1.3, typical 1.1
1 x 48 / 64 ≤ 1.5, typical 1.2
Return Loss dB ≥ 45
Repeatability dB ≤ 0.1
Crosstalk dB ≥ 40
PDL dB ≤ 0.2
WDL dB ≤ 0.3
TDL 2 ≤ N ≤ 16 dB ≤ 0.3
16 < N ≤ 64 ≤ 0.4
Switch Time 2 ≤ N ≤ 16 ms ≤ 5
16 < N ≤ 64 ≤ 10
Durability cycle ≥ 1 x 109
Maximum Optical Power mW ≤ 500
Latching Type   Non-latching
