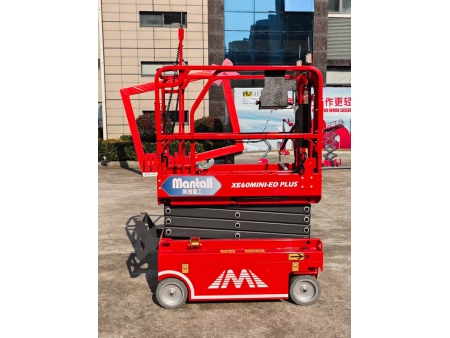

Mini Electric Scissor Lift, XE-MINI/ED PLUS Series
Request a Quote
Mini Electric Scissor Lift XE-MINI/ED PLUS Series
Mantall XE-MINI/ED PLUS electric scissor lift is a type of electric aerial work platform with a compact structure, making it versatile when the space is at a premium. The mini electric scissor lift offers a maximum platform height of 4.4m and a maximum working height of 6.4m, and allows for lifting 2 operators with a 240kg load capacity. Characterized by its smooth lift and all-electric drive system, XE-MINI/ED PLUS electric scissor lift drives operators to indoor jobsites quietly and without emission. The efficient electric power system provides the electric scissor lift longer runtime per charge with the maximum driving speed of 3km/h.
Standard Features
- Proportional controls
- Self-lock gate on platform
- Extended platform
- Drivable at full height
- Non-marking Tires
- 4*2WD
- Automatic brake system
- Emergency lowering system
- Emergency stop button
- Explosion-proof of the tubing
- Diagnosis system
- Tilt sensor with alarm
- Horn
- Flash light
- Hour meter
- Safety brackets
- Forklift pockets
Optional
- Overload sensor
- AC power to platform
Specifications
| Models | XE50MINI/ED PLUS | XE60MINI/ED PLUS |
| Working height max H1 | 5.4 m | 6.4 m |
| Platform height max H2 | 3.4 m | 4.4 m |
| Platform extension size | 0.55 m | |
| Lifting capacity | 240 kg | |
| Lifting capacity on the extension | 100 kg | |
| Dimension of the platform B*C*A | 1.28X0.76X1.1 m | |
| Platform length-extended K | 1.83 m | |
| Platform Skirting board height L | 0.17 | 0.17 |
| Overall length and width E*F | 1.49X0.76 | 1.49X0.76 |
| Height stowed D | 1.95 | 2.03 |
| Height-guardrails folded M | 1.5 | 1.59 |
| Wheelbase G | 1.05 | 1.05 |
| Ground clearance H | 0.06 m | |
| Ground clearance-deployed potholes | 0.015 m | |
| Turning radius-inside | 0.35 m | |
| Raised time/Lowering time | 20/17 s | 23/19 s |
| Drive speed-stowed | 3 km/h | |
| Drive speed-raised | 0.8 km/h | |
| Gradeability | 25% | |
| Tilt sensor (front to back/side to side) | 3° / 2° | |
| Hydraulic tank capacity | 2 L | |
| Non-marking tires | 230 mm | |
| Max. platform occupancy | 2 pers | |
| Power source | 24V | |
| Weight | 760 kg | 820 kg |
Working Heights
Stowed Dimensions
