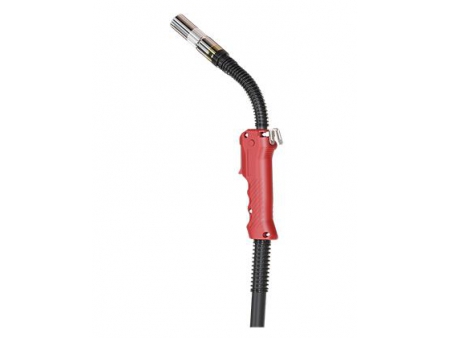

QTB-500A, MIG/MAG Welding Gun
Request a Quote
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 500A
Rating: Mixed Gas: 420A
Duty Cycle: 60%
Wire Size: 1.2-1.6
Order Part No.
| PNA FITTING | 3M | NS-500K-3 |
| 4M | NS-500K-4 | |
| 5M | NS-500K-5 |

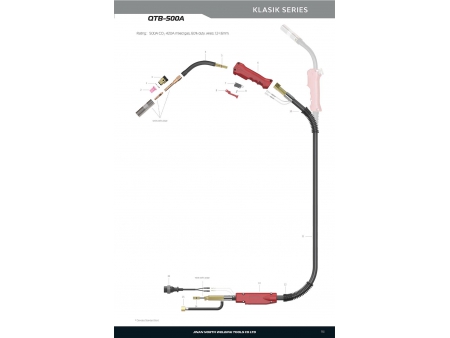

Components
| No. | Part Number | Description |
| 1 | Q1119 | Gasket |
| 2 | KD5001 | Diffuser |
| 3 | KE5001 | Insulator |
| 4 | KF5255* | Swan Neck 55° |
| KF51180 | Swan Neck 180° | |
| 5 | Q508015S | O-ring 8X1.5 |
| 6 | KH3103 | Handle |
| 7 | Q711* | Switch OMRON |
| Q721 | Switch | |
| 8 | KJ3003 | Trigger |
| 9 | Q60512 | Trigger spring |
| 10 | KS3101 | Front Cable Support Spring |
| 11 | KL5030 | Cable Assembly 3m |
| 12 | KS3201 | Back Cable Support Spring |
| 13 | KH3230 | Back Handle |
| 14 | Q506318 | O-ring 6.3x1.8 |
| 15 | KW0001 | Gas Hose Assembly |
| 16 | KV0002 | Control Cable Assy c/w Plug |
