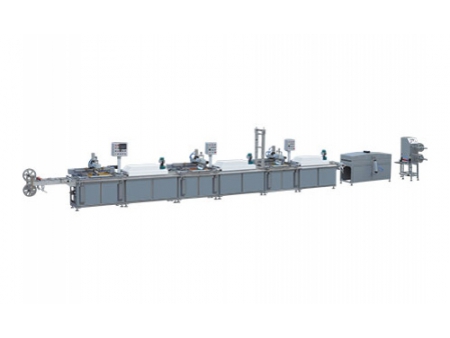

MHS-300 Screen Printing Machine

MHS-300 Screen Printing Machine

MHS-300 Screen Printing Machine

MHS-300 horizontal screen- printing machine features complete automatic color register set up and electronic and mechanical integration systems. The high color register accuracy and excellent rapidness enable the printer ideal for large areas and dark substrate printing. The MHS-300 screen printing machine is exceptional at printing on a wide range of materials, including ribbon, rubber belt, woven label, leather, and others. According to the substrate material, application, ink thickness, color brightness, fastness and durability, different screen-printing methods and ink types can be chosen. Also, complete automatic constant printing on a roll-type belt substrate is available.

Features
  • PLC electronic control system achieves secure, reliable, and stable circuit control.
  • Stepping motor infeed system avoids the unstable printing quality caused by uneven tension.
  • Cylinders are adopted to lift print heads and the mesh frame. Every print head can separately raise for smooth operation. The frame can also automatically be lifted, convenient for mesh cleaning after printing.
  • The drying system adopts a hot air circulation device to save energy. (More than 30% energy saving than traditional drying device)
  • The full servo motor conveyor system enhances the color register accuracy and improves the durability of the conveyor by over 30%.
  • Ideal for large areas and dark substrate printing.
  • The MHS-300 screen printing machine can print on a wide range of materials, including ribbon, rubber belt, woven label, leather, and more. According to the substrate material, application, ink thickness, color brightness, fastness and durability, different screen printing methods and inks of various types can be chosen. Full automatic continuous printing on a roll-type belt substrate is available.

Note: The following devices are optional upon request: double-side printing belt overturning frame (for front and backside printing), computer-controlled register (electrical control and accurate register), infeed, and unwind system (for thin substrates and simultaneous multi-belt substrates printing), belt substrate gilding press.

Specifications
Model 2 Color Machine 3 Color Machine 4 Color Machine 5 Color Machine
Printing Area 400x270mm
Frame Size 700x430 mm
Printing Head 2 to 5 color
Printing Speed 3-10m/min
Power 14.5kw 18.5kw 22.5kw 26.5kw
Dimensions 9.5x1.2x1.3m 12.5x1.2x1.3m 15.5x1.2x1.3m 18.5x1.2x1.3m
