Insulin Syringe

Request a Quote

View All: http://syringes-needles.com/1-3-insulin-syringe.html

Single-use Disposable Medical Products Manufacturer Since 1997

Diabetes Care Products

Approval: EU-MDR and lSO13485
Sterilization Method: ethylene oxide sterilization, single-use syringe

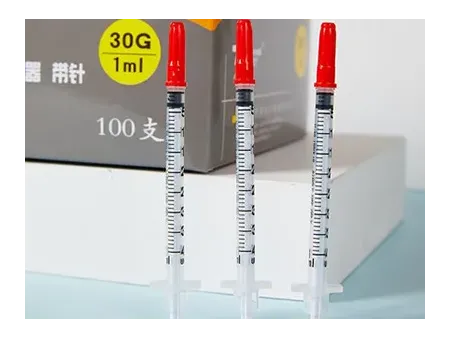

Syringe Volume: 0.3ml, 0.5ml, and 1ml

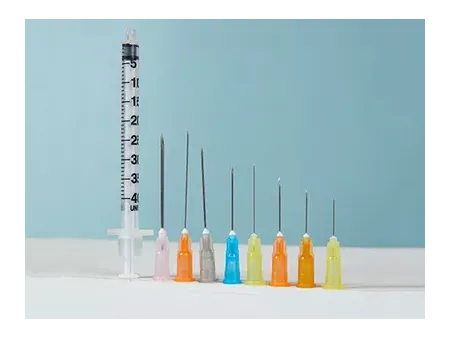

Needle Gauge: 0.25mm, 0.30mm, 0.33mm, 0.36mm, 0.40mm, and 0.45mm
Needle Length: 5mm to 19mm
Wall Type: regular wall (RW) and thin wall (TW)
Bevel: 11°±2° long bevel (LB) and 17°±2° short bevel (SB)

Registration Number of Approval Certificates

EU MDR NO.: G10 045084 0043 Rev.00
EU ISO13485 No.: Q5 045084 0039 Rev.01

Download Registration Certificates

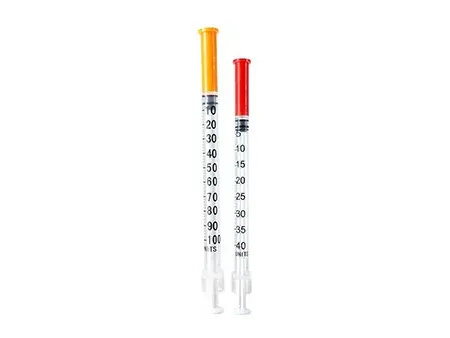

Our insulin syringes are designed to meet the needs of patients requiring precise and immediate insulin injections. Available in various capacities, they ensure accurate dosage administration. Each syringe is single-use and individually packaged to maintain hygiene and safety. Made from eco-friendly materials, they feature clear, easy-to-read markings and fine needles to reduce discomfort.

Components

Our concentric tip syringes are available in four types, each tailored for specific uses:

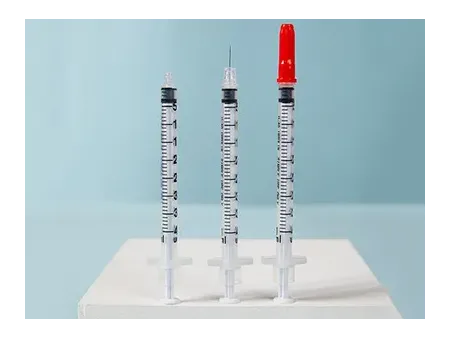

Type 1: Insulin syringe with a fixed needle, individually packaged. Components include an outer sleeve, plunger, piston, needle cover, and needle.
Type 2: Insulin syringe with a fixed needle and end cap for extra safety. Components include an outer sleeve, plunger, piston, needle cover, needle, and end cap.
Type 3: Non-6% (Luer) fitting with a non-removable needle, individually packaged for single use. Components include an outer sleeve, plunger, piston, needle seat, needle cover, and needle.
Type 4: Non-6% (Luer) fitting with a non-removable needle and end cap for added protection. Components include an outer sleeve, plunger, piston, needle seat, needle cover, needle, and end cap.

We use polydimethylsiloxane as a lubricant and UV glue as an adhesive to ensure smooth and safe operation.

Packaging

Our syringes are available in three levels of packaging to ensure optimal protection and convenience:

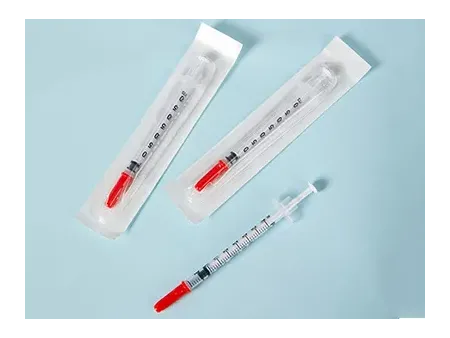

Individual packaging: Each syringe is individually packaged using dialysis paper and composite film (PET/PE) heat-sealed packs, or high-pressure PE bags, ensuring sterility and product protection.
Medium packaging: Multiple individually packaged syringes are grouped together in boxes made from grey base whiteboard paper or fine corrugated materials, providing an additional layer of protection.
Bulk packaging: Several medium boxes are then packed into large durable corrugated cardboard boxes, offering robust protection during storage and transport.
