Reflective Glass (Solar Control Glass)
Request a Quote
Our Capability

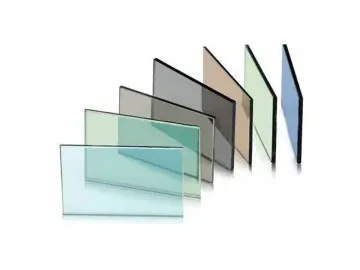

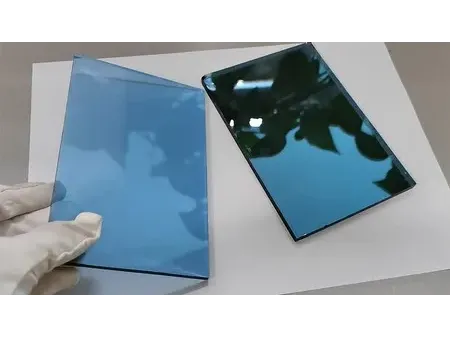

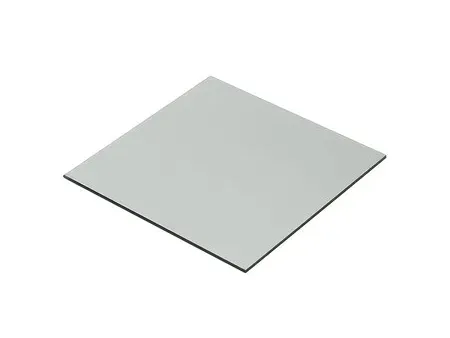

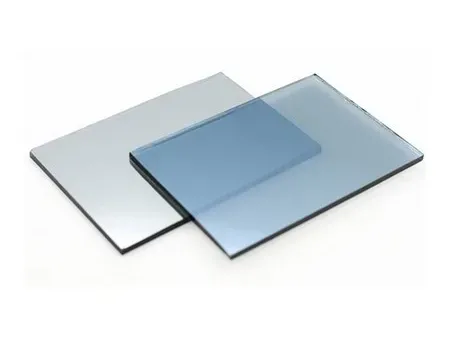

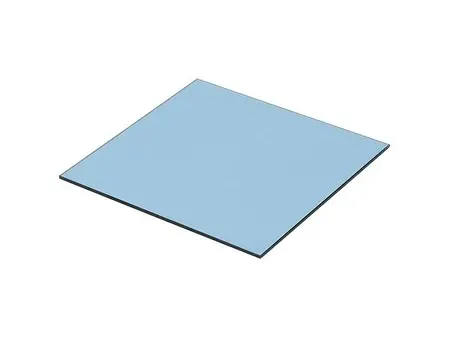

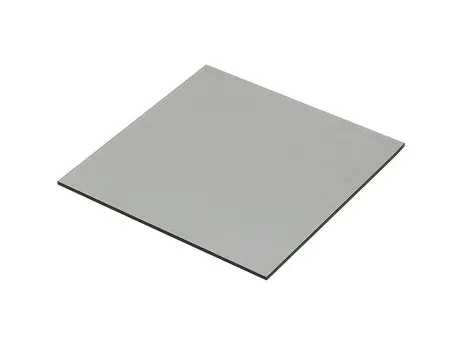

For our reflective glass products, we offer a complete range of colors, including bronze, grey, and blue series.
With 20 years of production and exporting experience, our glass products are known for superior quality and excellent resilience.
Our three production lines ensure consistent color uniformity and a stable supply of tinted glass year-round, making us your optimum choice for glass purchase.
Performance Data
| Color | Thickness (mm) | Tvis (%) | Rvis (%) | Solar (%) | U-Value (w/m2.k) | SC (%) | G (%) | RHG(%) | ||||
| Ext. | Int. | Tsol | Rol | Absol | Winter Night | Summer Day | ||||||
| Euro Grey Reflective | 5 | 22.94 | 14.18 | 43.73 | 33.25 | 11.32 | 55.43 | 5.81 | 5.24 | 0.58 | 0.5 | 407 |
| 6 | 18.5 | 16.6 | 54.2 | 30.2 | 13.2 | 33.3 | 5.81 | 5.24 | 0.46 | 0.4 | 333 | |
| Jinjing Grey Reflective | 5 | 28.97 | 15.05 | 38.72 | 37.21 | 11.84 | 49.95 | 5.84 | 5.27 | 0.62 | 0.53 | 430 |
| 6 | 25.38 | 13.25 | 39.14 | 33.93 | 10.74 | 55.33 | 5.81 | 5.24 | 0.59 | 0.5 | 411 | |
| Euro Bronze Reflective | 5 | 23.41 | 15.97 | 47.2 | 34.15 | 12.17 | 53.69 | 5.84 | 5.27 | 0.58 | 0.5 | 409 |
| 6 | 21.94 | 12.98 | 44.3 | 31.75 | 10.34 | 57.9 | 5.81 | 5.24 | 0.57 | 0.49 | 402 | |
| Ford Blue Reflective | 5 | 26.01 | 22.2 | 49.24 | 30.83 | 14.63 | 54.54 | 5.84 | 5.27 | 0.55 | 0.47 | 387 |
| 6 | 22.81 | 21.62 | 52.15 | 27.83 | 14.58 | 57.59 | 5.81 | 5.24 | 0.53 | 0.45 | 372 | |
Specifications
- Thickness: 4mm, 5mm, 6mm, 8mm
- Common size: 2134×3300/3660mm, 2250×3300/3660mm, 2440×3300/3660mm
- Other sizes are customizable
Applications
Glass Curtain Wall System

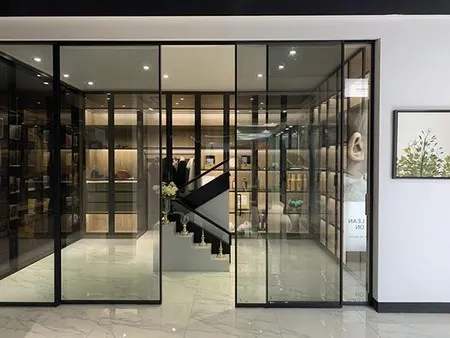

Glass Door and Window
Projects

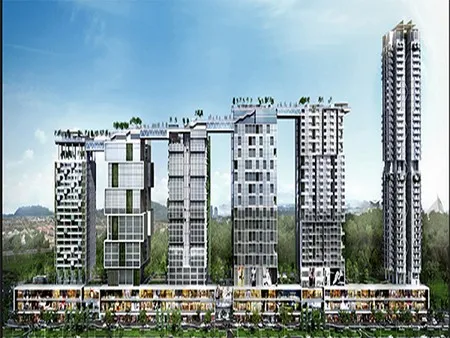

- Project Name: Skypark
- Location: Malaysia
- Glass: 10mm euro grey tempered glass, 6mm clear 12A 6mm low-E

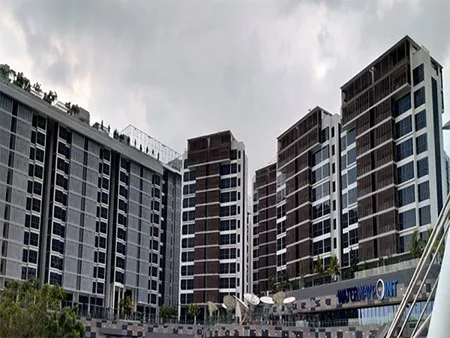

- Project Name: Water Way Piont
- Location: Singapore
- Glass: 5mm euro grey tempered 1.52 PVB 5mm online low-E tempered

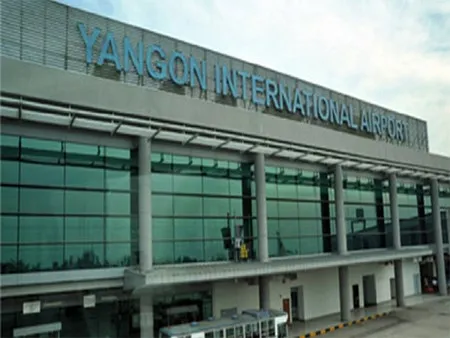

- Project Name: Yangon Airport
- Location: Myanmar
- Glass: 8mm F green low-e tempered 12A 6mm clear/1.52 clear PVB/6mm clear
