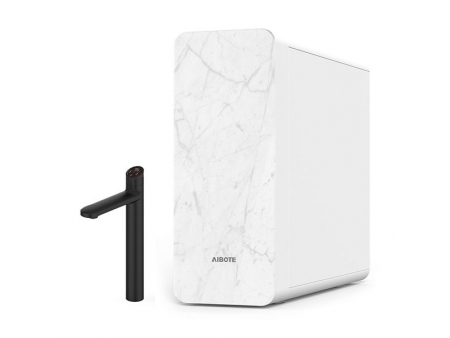

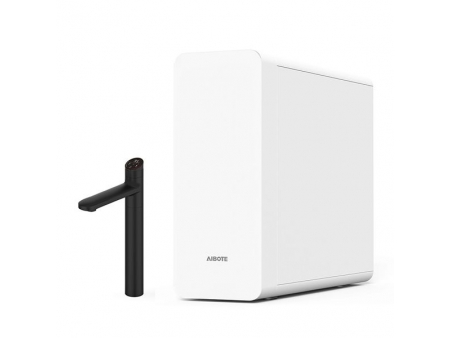

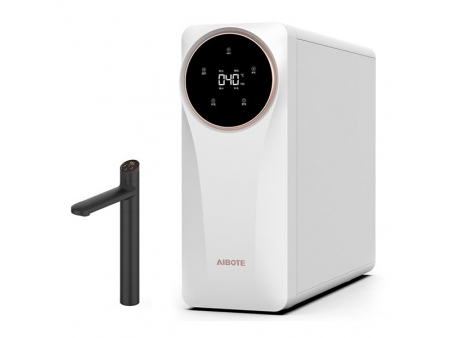

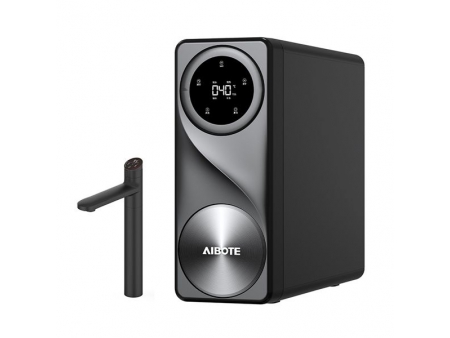

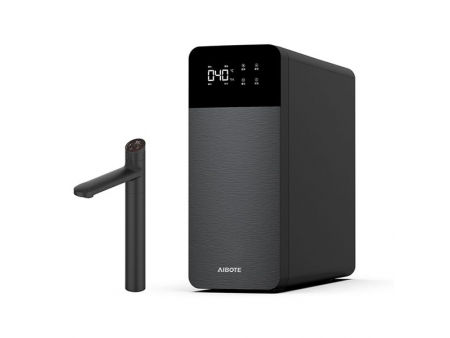

Under Sink RO Instant Hot Water Dispenser System
Reverse osmosis system integrating water purification and heating
- Filtration System5-stage composite filter cartridge (ACF RO C)
UV sterilizer - Flow Rate1.56L/min (purified cold water)
≥0.75L/min (purified 60℃ hot water);
≥0.50L/min (purified 45℃ hot water); - FunctionsInstant hot water available in seconds

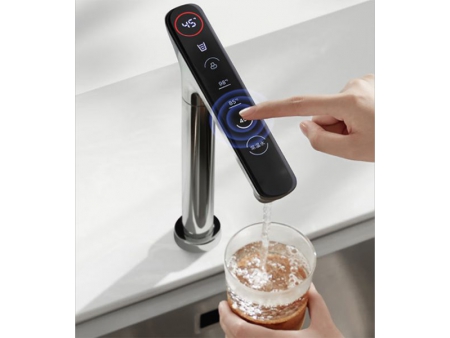

Smart faucet with filter life display and hot water temperature selection
Hassle-free 3-second filter replacement
Dry-burning prevention design
Multifunctional touch panel faucet customizable
Empty stale water by just one press of a button
Pasteurization sterilization
High precision RO purification and instant access to hot water
Our RO instant hot water dispenser system is equipped with a five-stage filtration cartridge (ACF RO C) and a UV sterilizer, which can remove odors and eliminate bacteria, viruses and heavy minerals in water, with filtration precision of 0.0001um. In addition, we have placed the post-position carbon block in the water filter system that can add minerals essential to people’s health in the water with better taste. The UV sterilizer inside guarantees zero bacteria and virus in your drinking water. Besides, our RO instant hot water dispenser system has a heating device that preserves enough hot water available at any time of a day. Three levels of water temperature 23℃, 45℃ and 60℃can be selected by simply pressing the buttons on smart display faucet. Fresh and great tasting water perfect for drinking, cooking and making coffee and tea is ready in the tank.
- Specially-designed integrated water circuit effectively prevents water leakage
- Fast-flow, fresh and great tasting water perfect for drinking, cooking and making delicious coffee, tea
- Quiet operation with noise level of less than 40dB
- Small size of the instant hot water dispenser system saves space in your kitchen
- Real-time monitoring of water TDS, which can be read via smart display faucet
- Filter lifetime reminding function, with easy filter replacement
- Model AW-RG01R
- Model AW-RG02R
- Model AW-RG03R
- Model AW-RG04R
- Model AW-RG04R
| RO flow available | 400-800GDP | |
| Purified/drain ratio | 2:1 | |
| Power | 2200W 1650W | |
| Voltage | AC 220V/50Hz| AC 110V/60Hz | |
| Purified water flow rate | 1.56L/min (for 600GPD ambient water) 2.08L/min (for 800GPD ambient water) | |
| Hot water dispensing flow (≥ 90℃) | ≥750ml/min(for water storage tank @60℃) ≥500ml/min(for water storage tank @45℃) | |
| Filtration stages | 5 | |
| Filter service life | 5in1 composite filter cartridge (ACF RO C) / 12-18 months | |
| Min. inlet water pressure(MPa) | 0.1 | |
| Max. inlet water pressure(MPa) | 0.4 | |
| Inlet water quality | Municipal water | |
| Inlet water temperature | 5-38℃ | |
| Working temperature | 4-40℃ (ambient) | |
| The above data is obtained from our laboratory test results. Due to the difference in water quality and water consumption, the replacement cycle of the filter element will be different, depending on the actual use. | ||
