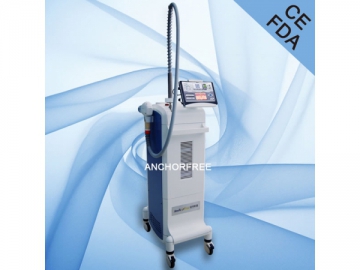

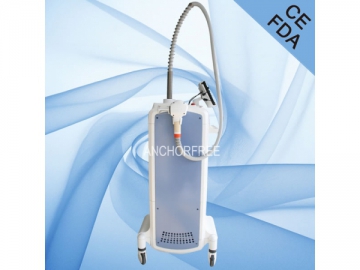

1550nm Laser for Skin Tightening, Wrinkle Removal and Scar Reduction L1550
Applications
Skin Tightening / Wrinkle Removal / Scars Reduction
Advantages
1. 3 different scanning tips
2. 4 fractional treatment modes: dermis and epidermis treatments are effective at the same time while in composite mode
3. 5 default graphics for precise scanning with up to 10 levels of scan coverage
4. Unique DIY graphic scanning functions for the best match with any target shape
5. An advanced safety protection system uses a real time online self-detection system
6. World’s top 1550 fiber laser, up to 30W energy output (20W and 10W are optional)
7. Highly precise scanning with a top quality scanning system
8. Up to 200mj single point energy with a 50±5um spot size.
9. Highly improved overall visual effect and stability with the use of injection process production
10. Convenient and easy to use handpiece is suitable for body mechanics
| Item | Specification |
| Laser type | (CW) Fiber laser |
| Laser wavelength | 1550nm |
| Laser output power | 30W/20W (Optional) |
| Beam mode | TEM00 (<1.1M2) |
| Treatment mode | Light mode/Mid mode/Deep mode/Fusion mode |
| Scanning pattern | Round/Square/Rectangle/Triangle/Torus/DIY |
| Pulse energy | Up to 200mj |
| Focal spot diameter | 50~150um |
| Pulse delay | 0ms-100ms |
| Stripping ratio | 5%~95% |
| Aiming light | 635nm (≤5mw) |
| Scanning mode | Ordered / Random |
| Rated input power | AC230V±10%, 60/50Hz / AC110V±10%, 60Hz (Optional) |
| Gross weight | 60kg |
| Size | 500mm×700mm×1230mm |

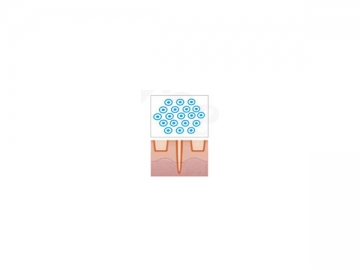

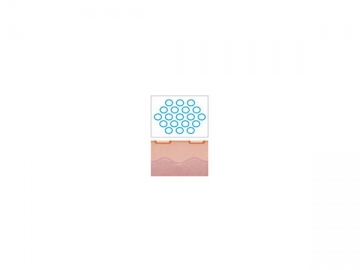

| L1550 Light | L1550 Middle | L1550 Deep | L1550 Combination |
| Treat skin surface and facilitate skin cell regeneration | Treat the middle part of skin tissue to achieve more pronounced effect of hair removal; At the junction of dermis and epidermis, extra solidification tissue will be generated. | Go deep into the dermis through epidermis, achieving prominent cutin removal. Surrounding skin tissue will be exfoliated and coagulation effect will be generated. | Unique combination of treatment depth and intensity due to thermal damage and scan mode optimizes treatment effect on epidermis and dermis. |
| | |
