Pneumatic actuated butterfly valve is the butterfly valve equipped with pneumatic actuators. Its valve disc is driven to rotate within a 90-degree range and powered by the pneumatic actuator. According to different ways of action, pneumatic actuated butterfly valves can be classified into switch-type and intelligent regulation-type. Specifically, the switch-type pneumatic actuated butterfly valve allows for full opening or closing of the valve, while the intelligent regulation-type is possible to add a valve positioner to the actuator to input corresponding signals, enabling arbitrary adjustment of the butterfly valve disc from 0 to 90 degrees.

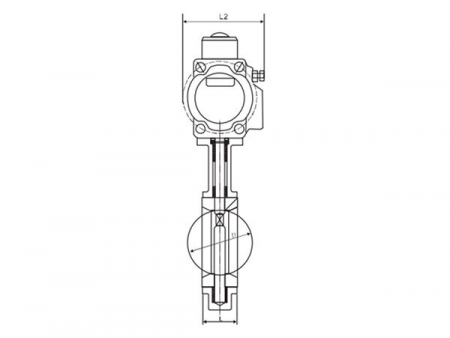

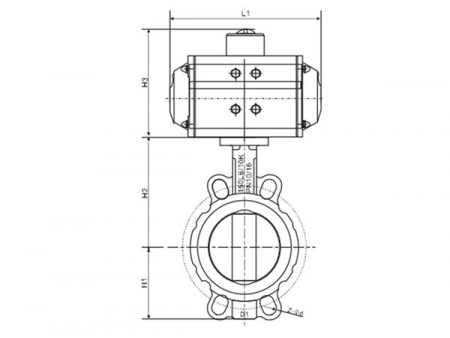

Dimensions (unit: mm)

DN (mm)	L	L1	L2		PN1.0		PN1.6		150Lb		10K		D3	H1	H2	H3
DN (mm)	L	L1	L2		D1	Z- Ød	D1	Z- Ød	D1	Z- Ød	D1	Z- Ød	Flange No.	H1	H2	H3
50	42	184	83	52.9	125	4-19	125	4-23	120.6	4-19	120	4-19	F05	73	125	120
65	44.7	184	83	64.5	145	4-19	145	4-23	139.7	4-19	140	4-19	F05	82	136	120
80	45.2	184	83	78.8	160	8-19	160	8-20	152.4	4-19	150	8-19	F05	91	142	120
100	52.1	204	103	104	180	8-19	180	4-23	190.5	8-19	175	8-19	F07	104	163	129
125	54.4	204	103	123.3	210	8-19	210	4-23	215.9	8-22	210	8-23	F07	127	176	129
150	55.8	244	103	155.6	240	8-23	240	4-25	241.3	8-22	240	8-23	F07	138	197	129
200	60.6	268	122	202.5	295	8-23	295	4-25	298.5	8-22	290	12-23	F10	170	230	153
250	65.6	268	122	250.5	350	12-23	355	4-28	362	12-25	355	12-25	F10	204	261	153
300	77	301	143	301.6	400	12-23	410	4-28	432	12-25	400	16-25	F10/12	241	294	175
350	76.5	301	143	333.3	460	16-23	470	4-30	476	12-29	445	16-25	F10/12	263	335	175
400	86.5	525	206	389.6	515	16-28	525	4-30	540	16-29	510	16-27	F14/16	309	400	260
450	105.6	525	206	440.5	565	20-28	585	4-30	578	16-32	565	20-27	F14/16	328	420	260
500	132	532	226	491.6	620	20-28	650	4-33	635	20-32	620	20-27	F14/16	361	480	285
600	152	602	260	592.5	725	20-31	770	4-36	749.5	20-35	730	24-32	F16	459	560	319
700	163			695	840	24-31	840	24-36	864	28-35	840	24-33	F25	520	624
800	188			794.7	950	24-34	950	24-39	978	28-41	950	28-33	F25	590	680
900	203			864.7	1050	28-34	1050	28-39	1086	32-41	1050	28-33	F25	656	720
1000	216			965	1160	28-37	1170	28-42	1200	36-41	1160	28-39	F25	720	800
1200	276			1158	1380	32-40	1390	28-49	1422	44-41	1380	32-39	F30	844	941

Note: If you need other sizes and materials of butterfly valves, please contact us .

The pneumatic actuated butterfly valve is highly useful for controlling highly flammable liquids such as petrochemical products, oil, and natural gas. It works through pneumatic mechanisms, enabling rapid functionality while remaining immune to fire and electrical short circuits. As a result, it is considered the most cost-effective and energy-efficient industrial valve.

We provide switching mode two-position types and intelligent regulating types. If you want to get more information, please contact us !
