Automatic Arterial Blood Collection Syringe Assembly Line
Request a Quote
2,000-2,500 pcs/h
Automatic assembly machine for arterial blood collection syringe
- Production capacity 2,000-2,500 pcs/h
- Barrel size 3ml (customizable, suitable for only one size)
- Additive coating 10μL ultrasonic spray coating system

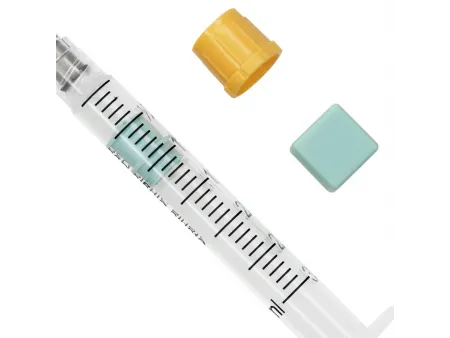

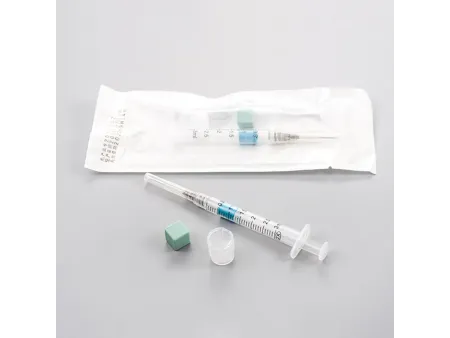

Finished Product Samples
The automatic arterial blood collection syringe assembly line is designed to meet these demands, with a production capacity of 2,000-2,500 syringes per hour. This assembly system handles the entire process, from feeding the syringe barrels and needles to reagent application and drying. Integrated quality control measures, including visual inspections and automatic rejection of defective products, ensure consistent, high-quality products.
Work Flow
- Barrel feeding
- Needle feeding and twisting
- Reagent spraying
- Reagent drying
- Breathing part assembled into rubber
- Rubber assembled to push rod
- Push rod and barrel assembly
- Visual quality inspection
- Defective product rejection
- Finished product output.
Technical Specifications
| Production capacity | 2,000-2,500 pcs/h |
| Barrel size | 3ml (customizable, suitable for only one size) |
| Additive coating | 10μL ultrasonic spray coating system |
| Control system | PLC control with touch screen |
| Power | 20kW/AC380V |
| Dimensions | 5600×3200×1900mm |
