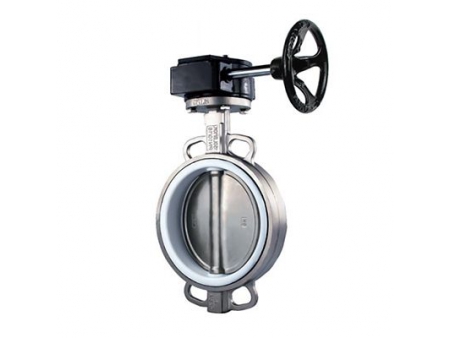

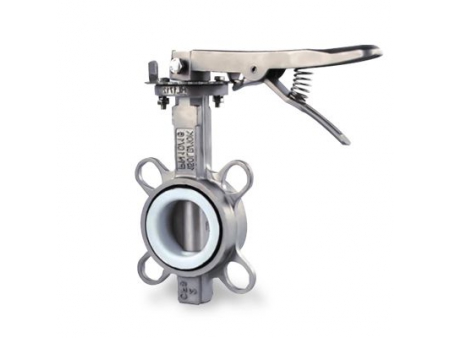

Stainless Steel Butterfly Valve
Request a Quote
We design and manufacture stainless steel butterfly valves with a variety of styles and sizes to meet various application needs. Both the valve seat and valve disc sealing surface are made of stainless steel with different hardness, having excellent corrosion resistance and a longer lifespan compared to other types of butterfly valves.
Applications
The stainless steel butterfly valve is widely used in industrial pipeline systems, including high-temperature and high-pressure conveying systems in the metallurgical industry, pipeline systems in wind or hydroelectric power plants, and petroleum transportation systems, aiming to control and regulate the flow of fluids.

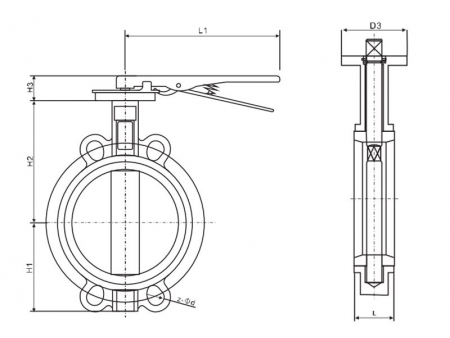

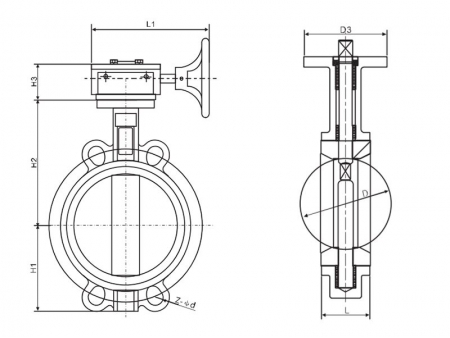

Dimensions (unit: mm)
DN (mm) | L | L1 | D | PN1.0 | PN1.6 | 150Lb | 10K | D3 | H1 | H2 | H3 | ||||
D1 | Z- Ød | D1 | Z- Ød | D1 | Z- Ød | D1 | Z- Ød | Flange No. | |||||||
50 | 42 | 220 | 52.9 | 125 | 4-23 | 125 | 4-23 | 120.6 | 4-19 | 120 | 4-19 | F05 | 70 | 126 | 32 |
65 | 44.7 | 220 | 64.5 | 145 | 4-23 | 145 | 4-23 | 139.7 | 4-19 | 140 | 4-19 | F05 | 77 | 137 | 32 |
80 | 45.2 | 255 | 78.8 | 160 | 8-20 | 160 | 8-20 | 152.4 | 4-19 | 150 | 8-19 | F05 | 92 | 143 | 32 |
100 | 52.1 | 255 | 104 | 180 | 4-23 | 180 | 4-23 | 190.5 | 8-19 | 175 | 8-19 | F07 | 105 | 164 | 32 |
125 | 54.4 | 290 | 123.3 | 210 | 4-23 | 210 | 4-23 | 215.9 | 8-22 | 210 | 8-23 | F07 | 120 | 177 | 32 |
150 | 55.8 | 290 | 155.6 | 240 | 4-25 | 240 | 4-25 | 241.3 | 8-22 | 240 | 8-23 | F07 | 134 | 198 | 32 |
200 | 60.6 | 340 | 202.5 | 295 | 4-25 | 295 | 4-25 | 298.5 | 8-22 | 290 | 12-23 | F10 | 171 | 231 | 45 |
Note: If you need other sizes and materials of butterfly valves, please
The butterfly valve is used in limited space as well as the fully open and fully close positions for throttling or regulating flow.
The materials include cast iron, ductile iron, carbon steel, and stainless steel, etc.
Standards vary depending on the country, and the application. Please consult our technical staff for details.
It is characterized by acid resistance and alkali resistance. This valve is suitable for highly corrosive working environments.
Our company is a professional stainless steel precision casting foundry that has a large stock of general industrial valves, and we also provide a variety of customized products according to the purchaser's drawings and materials.
