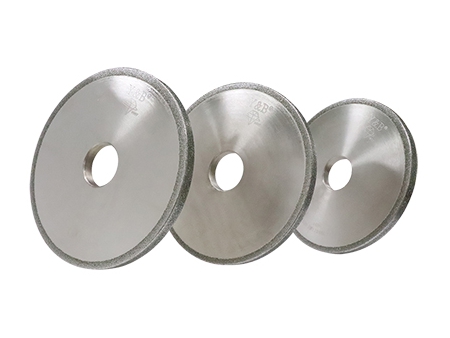

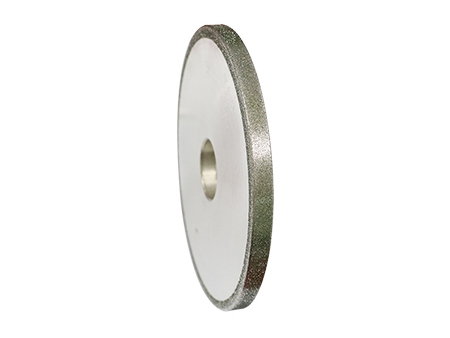

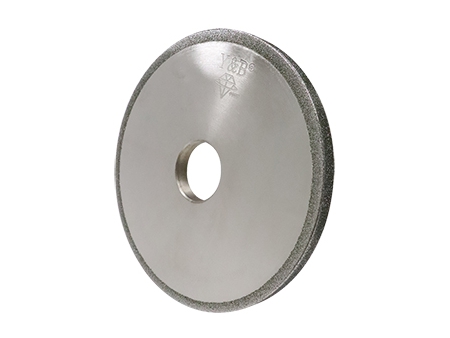

Straight Grinding Wheel
Request a Quote
This product has been discontinued and removed from our shelves.
The straight cup grinding wheel is commonly applied for the grinding of alloy cutting tools, including milling cutters, drill bits, spade bits, step reamers, gravers, etc. It can be equipped in many different tool grinding machines. It is also used for form grinding in the processes of gemstones, corals, rubber, shells, marbles, fine ceramics, carbon fibers, etc.
The electroplated grinding wheel features excellent abrasive concentration and protrusion. Its sharpness presents great cutting power and high grinding efficiency.
1A1 Straight Grinding Wheel
| Outer diameter | Overall thickness | Arbor hole diameter | Abrasive width |
| 12 | 8-12 | 6 | 2/3 |
| 14 | 8-14 | ||
| 15 | |||
| 16 | 8-16 | 10 | |
| 18 | |||
| 20 | |||
| 23 | 12-20 | ||
| 25 | 2-20 | 5/6/8/10/12 | 2/2.5/3/4 |
| 30 | 5/6/8/10/12/13 | ||
| 35 | 10/12/12.7/16 | 2/2.5/3/4/5 | |
| 40 | 0.2-20 | 8/10/12/12.7/16 | |
| 45 | |||
| 50 | |||
| 60 | 8/10/12/12.7/16/19.05/20/22.23 | ||
| 75 | 0.4-30 | 10/16/19.05/20/22.23/25.4 | 3/4/5 |
| 80 | |||
| 100 | 0.4-35 | 20/22.23/25.4/31.75/32 | 3-6 |
| 115 | 2-20 | 20/22.23/25.4/31.75/32 | |
| 125 | 0.8-35 | 4/5/6/8/10 | |
| 150 | 1-35 | 25.4/31.75/32/40 | |
| 175 | 3-35 | 31.75/32/40 | 5/6/8/10/16 |
| 180 | 10-40 | 31.75/32/40/50.8/75/76.2 | |
| 200 | 1-40 | 5/6/8/10/16/20 | |
| 250 | 10-60 | 50.8/75/76.2/101.6/127 | |
| 300 | 3-60 | 75/76.2/101.6/127/203 | 5/6/8/10/16/20/25 |
| 350 | 12-50 | 127/203 | |
| 400 | 3.5-50 |
Note: other specifications can be customized upon request!
