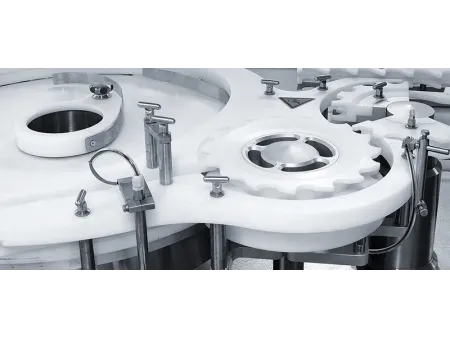

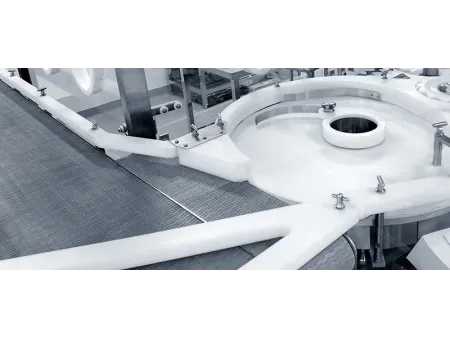

Automatic Blood Culture Bottle Assembly Line
Automatic assembly machine for blood culture bottles
- Production capacity 2,000 pcs/h (depending on oxygen content)
- Product types Aerobic culture bottles, facultative aerobic culture bottles, anaerobic culture bottles, facultative anaerobic culture bottles
- Adhesive spraying Water-based solution, spray volume 50μL ±5μL
Normal human blood is sterile, but when bacteria enter the bloodstream, they can cause blood infections, a serious infectious disease. Blood culture bottles are commonly used in medical laboratories to cultivate and detect bacteria or other microbes within the human body. A positive blood culture is necessary for diagnosing bacterial or fungal bloodstream infections, offering significant value in clinical infection diagnosis. These bottles vary, including anaerobic bottles and aerobic bottles for adults, and bottles for children.
The blood culture bottle assembly lines manufactured by Hongreat includes automated bottle management, resin filling, culture medium filling, inert gas filling, vacuum sealing with stoppers, automatic aluminum cap crimping, and packaging. This setup ensures that each culture bottle is prepared with precision, maintaining the necessary conditions for effective microbial growth detection.
- Luting agent spraying
- Drying
- Sensing film (gel) filling
- Drying
- Gamma sterilization
- Resin filling
- Culture medium filling
- Gas filling & vacuuming
- Capping (aluminium cap)
- Sterilization (High temp & pressure)
- Aseptic culture
- QC
- Labeling
- Packing
| Production capacity | 2,000 pcs/h (depending on oxygen content) |
| Product types | Aerobic culture bottles, facultative aerobic culture bottles, anaerobic culture bottles, facultative anaerobic culture bottles |
| Luting agent spraying | Water-based solution, spray volume 50μL ±5μL |
| Sensing film (gel) filling | 2.5±0.25mL, viscosity 3600mpas |
| Large-pore resin filling | 4±0.4 grams |
| Ion exchange resin filling | 2±0.2 grams |
| Culture medium filling | 35ml±0.1ml |
| Vacuum level | < -95kpa |
| Vacuum accuracy | ±5% (based on the vacuum value) |
| Bottle size | Applicable to only one bottle type, based on sample specifications |
| Aluminum cap size | Based on sample specifications |
| Rubber stopper material and size | Based on sample specifications |
