Monel Alloy

Request a Quote

View All: http://alloys-en.com/1-8-monel-alloy.html

Nickel-copper alloys

Your Trusted Source for Monel Alloy Manufacturing

Monel alloys are nickel-based alloys known for their exceptional corrosion resistance, high strength, and durability. These nickel-copper alloys typically contain about 67% nickel and 28-29% copper, along with small amounts of iron, manganese, and other elements to enhance their performance.

Available grades: Monel 400, Monel K500

Outstanding corrosion resistance in seawater, acidic environments, and other corrosive media
Maintains good mechanical properties even at low temperatures
Excellent resistance to chloride-induced corrosion, making it suitable for harsh marine environments
Retains its physical properties across a wide temperature range, including high and low temperatures
Easily forged, rolled, drawn, and processed into various shapes for different applications
Low magnetic permeability, making it ideal for magnetically sensitive applications

Marine engineering: Used in shipbuilding, subsea pipelines, and seawater desalination systems
Chemical & petrochemical industry: Applied in reactors, heat exchangers, pumps, and valves
Energy sector: Found in nuclear and thermal power plant cooling systems
Food processing & pharmaceuticals: Used in mixers, reactors, and food-handling equipment
Aerospace industry: Applied in aircraft engine components and spacecraft structures
Oil & gas extraction: Utilized in well piping and subsea production systems
Electronics & Battery Industry: Used in lithium battery connectors and sputtering targets

Product Forms

Monel Alloy Plate/Sheet

Monel Alloy Rod

Monel Alloy Wire

Monel Alloy Tube

Monel Alloy Strip

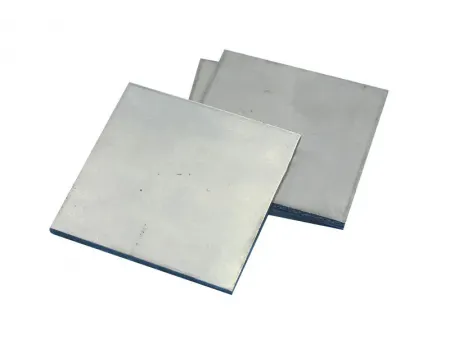

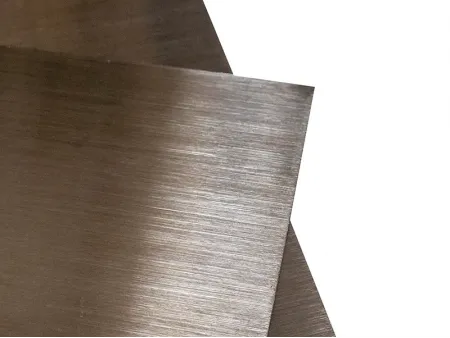

Plate / Sheet

Thickness: 0.5mm-50mm
Width: 500mm-2000mm
Length: 1000mm-6000mm

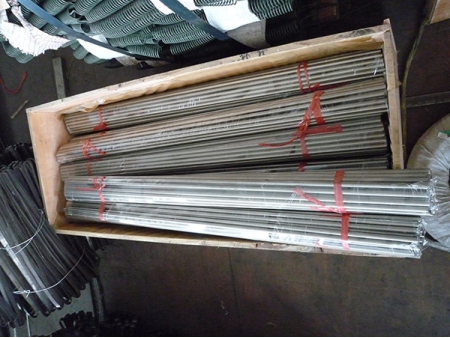

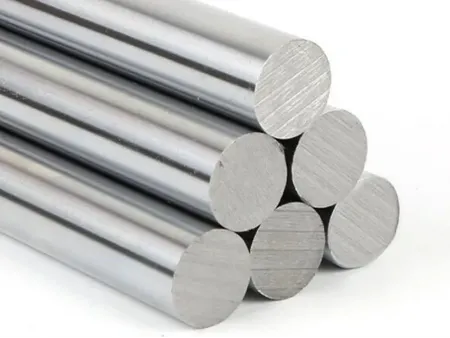

Rod

Diameter: 6mm-300mm
Length: 500mm-6000mm

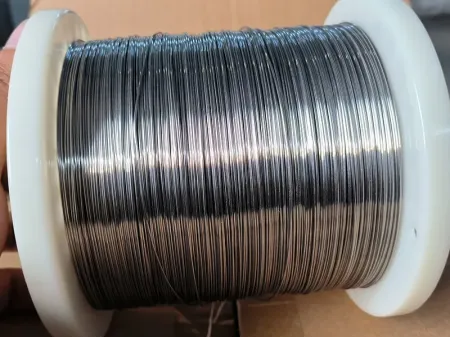

Wire

Diameter: 0.1mm-12mm
Delivery Forms: Coiled wire or straight wire

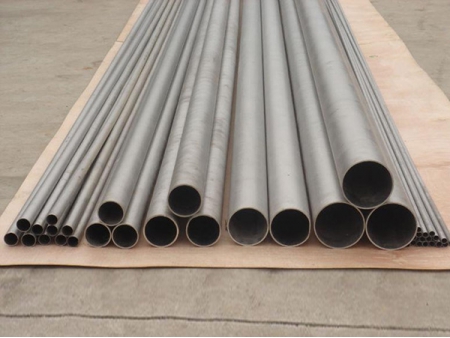

Tube

Outer Diameter: 3mm-273mm
Wall Thickness: 0.5mm-20mm
Length: ≤ 12000mm
Welding Wire/Rod

Diameter: 0.8mm-4.0mm
Delivery Forms: Welding wire or welding rod, used for welding Monel alloy products

Chemical Composition

Grades	Nickel (Ni)	Copper (Cu)	Aluminum (Al)	Titanium (Ti)	Iron (Fe)	Manganese (Mn)	Sulfur (S)	Carbon (C)	Silicon (Si)
Monel 400	≥ 63	28-34			≤ 2.5	≤2.0	≤ 0.024	≤ 0.3	≤ 0.5
Monle K500	≥63	27-33	2.3-3.15	0.35-0.85	≤2	≤1.5	≤0.01	≤0.25	≤0.5

Physical & Mechanical Properties

Grades	Density (g/cm³)	Melting Point (°C)	Tensile Strength (Rm N/mm²)	Yield Strength (Rp 0.2N/mm²)	Elongation at Break A5 (%)	Brinell Hardness (HB)
Monel 400	8.83	1300°C-1390°C	480	170	35	≥331
Monel K500	8.05	1288°C-1343°C	1100	790	20	/
