Electro Galvanized Wire

Request a Quote

View All: http://wiremeshguardrail.com

Electric Galvanized Iron Wire / Galvanized Steel Wire / Steel Wire

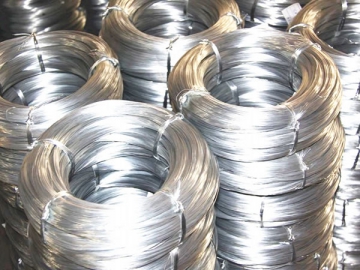

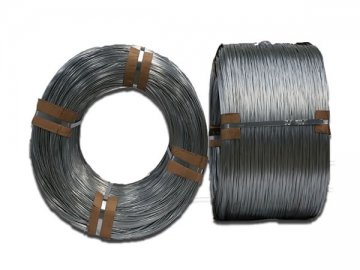

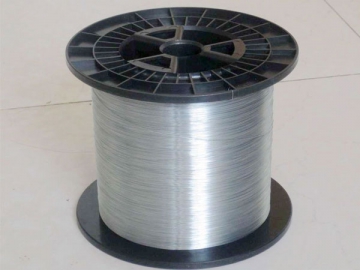

Electro galvanized wire is also known as electric galvanized iron wire or galvanized steel wire. We produce electric galvanized wire in diameters ranging from 0.14mm to 5.0mm, which can be supplied in the form of coils, spools, U type wire or straight wire and cut into tie wires.

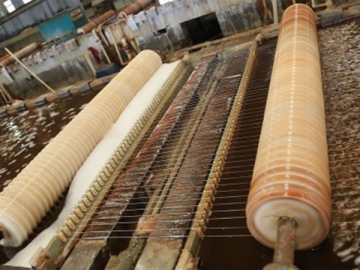

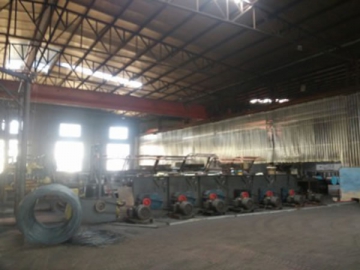

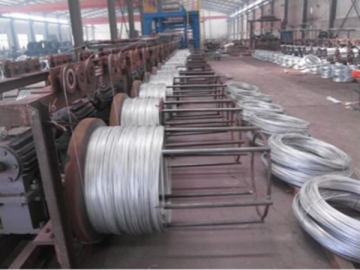

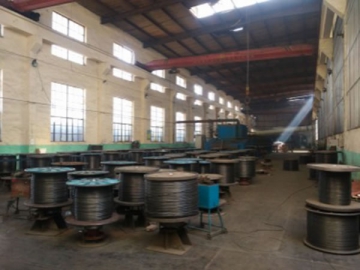

Production Process of Electro Galvanized Iron Wire
Steel rod coil -- Wire Drawing -- Wire Annealing--Rust Removing-- Acid Washing-- Boiling-- Drying-- Zinc Feeding-- Wire Coiling.

Electro galvanized wire can be used in construction, building, agriculture, wire mesh, gabion boxes, highway fencing, baling wire, armouring cable and other daily uses.

Wire Diameter of Electro Galvanized Iron Wire
0.14mm - 5.0mm.

Zinc Coating for Electro Galvanized Iron Wire
About 10-20g/m2.

Tensile Strength
35-55kgf/mm2, 350-550N/mm2.

Standard
BS or ASTM

Packing Way
1-1000kgs/coils

Production Process of Electro Galvanized Iron Wire
Steel rod coil -- Wire Drawing -- Wire Annealing--Rust Removing-- Acid Washing-- Boiling-- Drying-- Zinc Feeding-- Wire Coiling.

Specification

Gauge	SWG		BWG		BG		AWG
#	inch	mm	inch	mm	inch	mm	inch	mm
0	0.324	8.23	0.34	8.639	0.3954	10.069	0.3249	8.252
1	0.3	7.62	0.03	7.62	0.3532	8.971	0.2893	7.348
2	0.276	7.01	0.284	7.214	0.3147	7.993	0.2576	6.544
3	0.252	6.401	0.259	6.579	0.2804	7.122	0.2294	5.827
4	0.232	5.893	0.283	6.045	0.25	6.35	0.2043	5.189
5	0.212	5.385	0.22	5.588	0.2225	5.652	0.1819	4.621
6	0.192	4.877	0.203	5.156	0.1981	5.032	0.162	4.115
7	0.176	4.47	0.18	4.572	0.1764	4.481	0.1443	3.665
8	0.16	4.046	0.165	4.191	0.157	3.988	0.1285	3.264
9	0.144	3.658	0.148	3.759	0.1398	3.551	0.1144	2.906
10	0.128	3.215	0.134	3.404	0.125	3.175	0.1019	2.588
11	0.116	2.946	0.12	3.048	0.1113	2.827	0.0907	2.305
12	0.104	2.642	0.109	2.769	0.0991	2.517	0.0808	2.053
13	0.092	2.337	0.095	2.413	0.0882	2.24	0.072	1.828
14	0.08	2.032	0.083	2.108	0.0785	1.994	0.0641	1.628
15	0.072	1.829	0.072	1.829	0.0699	1.775	0.0571	1.45
16	0.064	1.626	0.065	1.651	0.0625	1.588	0.0508	1.291
17	0.056	1.422	0.058	1.473	0.0556	1.412	0.0453	1.15
18	0.048	1.219	0.049	1.245	0.0495	1.257	0.0403	1.024
19	0.04	1.016	0.042	1.067	0.044	1.118	0.0359	0.912
20	0.036	0.914	0.035	0.839	0.0392	0.996	0.032	0.812
21	0.032	0.813	0.032	0.831	0.349	0.887	0.0285	0.723
22	0.028	0.711	0.028	0.711	0.03125	0.749	0.02535	0.644
23	0.024	0.61	0.025	0.635	0.02782	0.707	0.02256	0.573
24	0.022	0.559	0.022	0.559	0.02476	0.629	0.02011	0.511
25	0.02	0.508	0.02	0.508	0.02204	0.56	0.01791	0.455
26	0.018	0.457	0.018	0.457	0.01961	0.498	0.01594	0.405
27	0.0164	0.417	0.016	0.406	0.01745	0.443	0.0142	0.361
28	0.0148	0.376	0.014	0.356	0.01562	0.397	0.01264	0.321
29	0.0136	0.345	0.013	0.33	0.0139	0.353	0.01126	0.286
30	0.0124	0.315	0.012	0.305	0.0123	0.312	0.01003	0.255
31	0.0116	0.295	0.01	0.254	0.011	0.27	0.00893	0.227
32	0.0108	0.274	0.009	0.229	0.0098	0.249	0.00795	0.202
33	0.01	0.254	0.008	0.203	0.0087	0.221	0.00708	0.18
34	0.0092	0.234	0.007	0.178	0.0077	0.196	0.0063	0.16
35	0.0084	0.213	0.005	0.127	0.0069	0.175	0.00561	0.143
36	0.0076	0.193	0.004	0.102	0.0061	0.155	0.005	0.127
