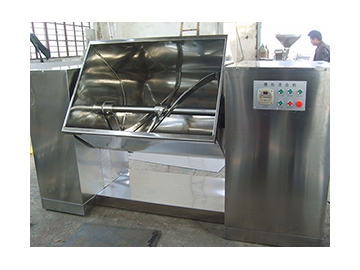

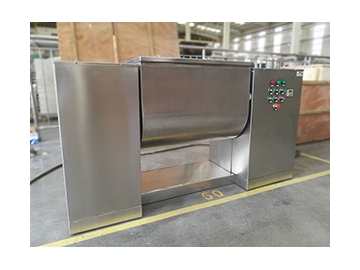

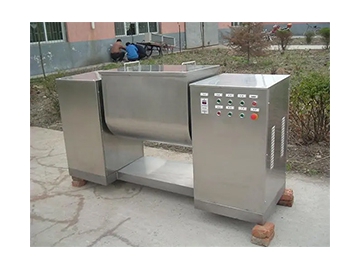

U-Trough Mixer
Trough medical mixer is suitable for pharmaceutical, chemical, food and other industries, primarily dealing with evenly mixed powder or pasty materials. This device works by adoption of mechanical drive, and this method can improve the quality of each beach of mixture with high degree of uniformity.
Firstly, this trough medical mixer rotates S type stirring paddle and turn over raw materials back and forth. After mixing the material well, our product starts to adopt electric control to set mixing time. When the time comes, it can stop automatically and discharge our material by electricity.
Specifications| Model | Working Capacity (L) | Rotary Speed of Main Shaft (r/min) | Motor Power (kW) | Material Pouring Motor Power (kW) | Machine Dimensions (mm) | Net Weight (kg) |
| 50 | 24 | 1.1 | 0.55 | 1000×425×800 | 260 | |
| 100 | 24 | 2.2 | 0.75 | 1390×450×900 | 300 | |
| 200 | 24 | 4 | 0.75 | 1300×600×1190 | 850 | |
| 300 | 24 | 5.5 | 1.5 | 1900×680×1200 | 950 | |
| 400 | 20 | 7.5 | 1.5 | 2150×730×1220 | 1100 | |
| 500 | 20 | 7.5 | 1.5 | 1800×1100×1400 | 1100 | |
| 600 | 18 | 7.5 | 1.5 | 2000×1300×1600 | 1300 | |
| 800 | 16 | 11 | 3 | 2600×920×1700 | 1500 | |
| 1000 | 14 | 13 | 3 | 2650×980×1850 | 1800 |
Jiangnan Enterprise is a professional trough medical mixer manufacturer in China. The wide range of products we offer includes automatic open capsule and powder taking machine, drug inspection machine, super mixing granulator, and more.
