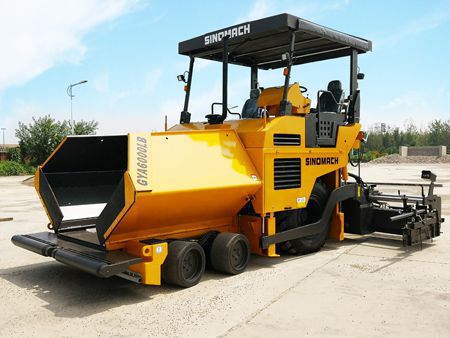

GYA6000L(B) Asphalt Paver
Request a Quote
- Wheel type pavers are widely used, convenient for quick transition, strong maneuverability and high work efficiency.
- Dongfeng Cummins EFI engine, strong power, high reliability; good low temperature start-up performance.
- Equipped with full hydraulic automatic telescopic screed, paving width 1.8-4.5m stepless adjustable.
- Optional all-wheel drive model provides greater traction for heavy duty and softer roadbed conditions.
Consulting Products Information
- Driving tire drive, the paving speed adopts constant speed automatic control technology.
- The key hydraulic components such as pumps, motors, joints, etc. are properly matched and can be adapted to the transportation and paving of any stable soil and asphalt mixture.
Technical Specification:
| Model | GYA6000L | GYA6000LB |
| Length×Width×Height (mm): | 6290×2690×3650 | 6290×2690×3650 |
| Total weight (kg): | 16000 | 17000 |
| Engine | Cummins QSB 3.9-C125 | Cummins QSB 3.9-C125 |
| Rated output (kw) | 93 | 93 |
| Basic paving width (mm) | 2500 | 2500 |
| Max. paving width (mm) | 6000 | 6000 |
| Max. paving thickness (mm) | 200 | 200 |
| Travelling type | Rear wheel drive | All wheel drive |
| Travelling speed (km/h) | 0-15 | 0-15 |
| Paving speed (m/min) | 0-11 | 0-11 |
| Hoper capacity (t) | 12 | 12 |
Besides the GYA6000L(B) asphalt paver, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.
Gallery
Brief Description
SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
