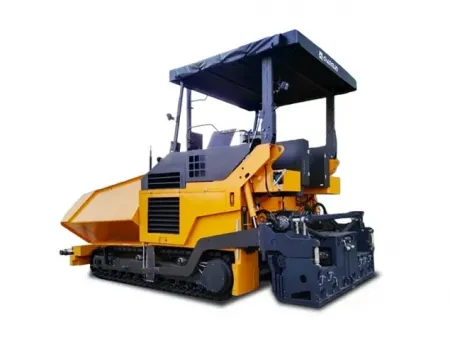

GYA9000 Asphalt Paver

GYA9000 Asphalt Paver
GYA9000 Asphalt Paver
GYA9000 Asphalt Paver
GYA9000 Asphalt Paver
GYA9000 Asphalt Paver
GYA9000 Asphalt Paver
Request a Quote
  • Large pavers are widely used in asphalt, stabilized soil construction operations such as highways, national roads, provincial roads, and urban roads.
  • Cummins EFI engine, strong power, high reliability; good low temperature start-up performance, suitable for all kinds of complex working conditions, mountain and plateau construction operations.
  • All imported hydraulic pumps, motors, valves, joints, reducers, radiators, water tanks, etc.
Consulting Products Information
  • Configure double vibrating, eccentric vibrating mechanical extension screed or hydraulic telescopic screed. The telescopic plate is equipped with screed tensioning system and pressurizing system to prevent screed deformation and meet the requirements of stable soil thickness paving operation.
Technical Specification:
Model GYA9000
Length×Width×Height (mm): 6720×2540×3887
Total weight (kg): 26500
Engine Cummins
Rated output (kw) 194
Basic paving width (mm) 2500
Max. paving width (mm) 9000
Max. paving thickness (mm) 450
Travelling type Crawler
Travelling speed (km/h) 0-3.6
Paving speed (m/min) 0-20
Hoper capacity (t) 16

Besides the GYA9000 asphalt paver, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.

Gallery
Brief Description

SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
