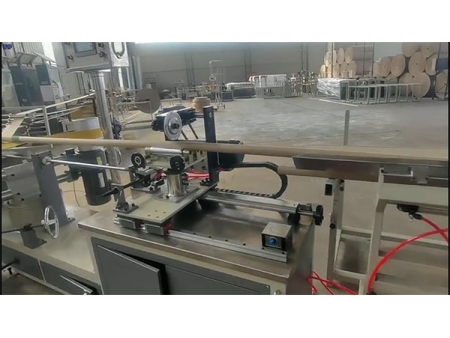

2 Head Paper Tube Making Machine, KS-60
Request a Quote
Main parameters
| Paper layer | 2-7 layers |
| Inner core diameter | 15-60 mm |
| Thickness | 1-5 mm |
| Winding speed | 0-40 m/min |
| Cut-to-length mode | Numerical control |
| Winding head | Two heads |
| Cutting method | CNC automatic cutting by circular knife |
| Gluing method | Double-sided gluing |
| Control method | Numerical control |
| Input voltage | 380V/220V |
| Number of operators | 1-3 |
| Total weight | 1804 kg |
| Machine size (L*W*H) | 3100*1500mm*1800 mm |
| Area size (L*W) | 11000mm*5000 mm |
Characteristics
- Automatic cut, fall tube and automatic supply glue
- when cutting tube, automatic change speed, and reset, disc cutter automatic cut, cut side even
- Inverter adjust speed control can save 30% electrical than popular electromagnetic variable -speed motor
- Infrared control, paper tube length accurate
Configurations
| Main motor power | 2*3.7 kW |
| PLC controller | Specially equipped |
| HMI | Specially equipped |
| Frequency converter | ENERGY |
| Electrical components | Omron/Chint |
| Signal element | Omron/Pefun |
| Button/emergency stop | Siemens |
| Pneumatic Components | Airtac/tianao/detai/chengdi |
