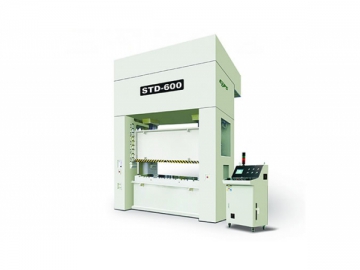

Straight Side Double Crank Press (400-1200 Tons), STD Series

Request a Quote

View All: http://stampingpress4u.com

Stamping Machine with High Pressing Forces | Large Sheet Metal Forming | 400 - 1200 Metric Tons Capacity

The STD series straight side double crank press features a wide working surface that is used for large metal forming applications. The punch machine has an enormous pressing capacity range of 400-1200 tons, making it suitable for stamping metal sheets with large thicknesses. The power press is often used in the production of motorcycle parts, bicycle components and household appliances.

Performance features

1. An octahedral guide for the slider and long guide rail guarantees operational precision.
2. The stamping press for automotive parts features a hydraulic overload protection device and overload automatic emergency cut-off.
3. PLC electric interlocking control allows for sudden stop, inching, single-passing and continuousmetal fabrication.
4. The dry pneumatic friction clutch is quiet, features large clutching torque, a small braking angle and is convenient to maintain.
5. Closed body structure, including beams, stand columns, and bases, which is connected with four tie bolts, with high rigidity (400-600)

Standard configuration

1.VS variable-speed motor
2.Oil pressure overload protection device
3.Electric slide adjust device
4.Independent electrical control cabinet
5.Movable working table
6.Die height indicator (unit: 0.1 mm)
7.Electric lubricating device
8.Power socket
9.Over-run safety device
10.Misfeed detection device
11.Preset counter (6 digits)
12.Air jetting device 1/2＂ primary circuit
13.Air source connector 1/2＂ secondary circuit

Optional configuration

1.Die cushion device
2.Photo-electric safety device
3.Upper slide feeding device
4.Safety stop and safety plug
5.Anti-vibration device
6.Die light
7.Quick die change device
8.Trolley
9.Frequency converter
10.Automatic feeding system

Technical parameters of Double Crank Press

Name	Unit	STD -400		STD-500		STD-600		STD-800		STD-1000		STD-1200
Model		S	H	S	H	S	H	S	H	S	H	S	H
Capacity	Ton	400		500		600		800		1000		1200
Rated tonnage point	mm	13	7	13	7	13	9	13	9	13	9	13	9
Stroke	mm	400	300	400	300	400	300	400	300	400	300	400	300
Stroke per minute	s.p.m	15-30	30-60	15-30	30-60	15-30	25-50	15-30	25-50	15-25	25-40	15-25	25-40
Die height	mm	600	650	650	700	650	700	700	750	1000	1050	1000	1050
Slide adjustment	mm	150		200		200		250		250		250
Slide area	mm	2800×1300		3100×1400		3600×1400		3800×1600		4600×1800		5000×1800
Bolster area	mm	2800×1400		3100×1500		3600×1500		3800×1600		4600×1800		5000×1800
Side opening	mm	850×600		950×650		1000×700		1100×800		1200×900		1200×900
Die cushion capacity	Ton	60		70		80		80		80		80
