GKM90P Offroad Wide Dump Truck
Request a Quote
Consulting Products Information
Technical Specification:
Model | GKM90P |
Engine | WD12G420E211 |
Gearbox | FAST 7DS220/8DS240A |
Front Axle Capacity (t) | 25 |
Drive Axle Capacity (t) | 35 35 |
Lifting System | Front Lifting Cylinder |
Tire | 14.00R25 |
Standard Bucket Capacity (m³) | 33 |
Drive Mode | 6×4 |
Curb Weight (t) | 32.2 |
Rated Payload Capacity (t) | 57.8 |
Maximum Gross Machine Weight (t) | 90 |
Overall Dimension (L×W×H) (mm) | 9100×3450×4130 |
Inner Dimension of Container (L×W×H) (mm) | 5850×3200×1750 |
Maximum Speed (km/h) | 43 |
Maximum Gradeability (%) | 30 |
Minimum Turning Radius (m) | 12 |
Minimum Ground Clearance (mm) | 380 |
Braking System | SORL System |

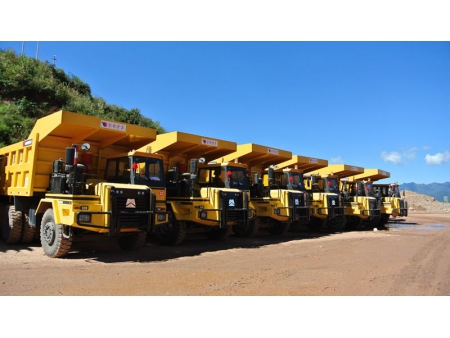

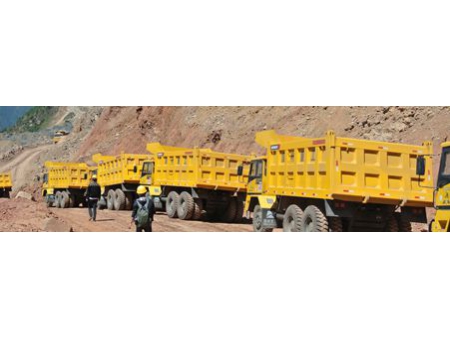

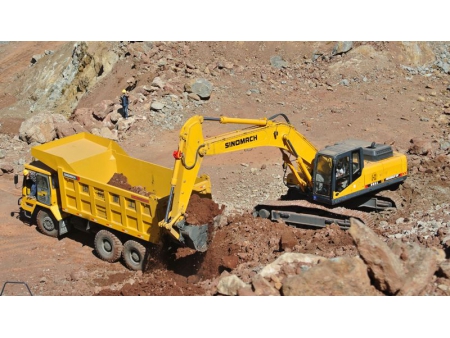

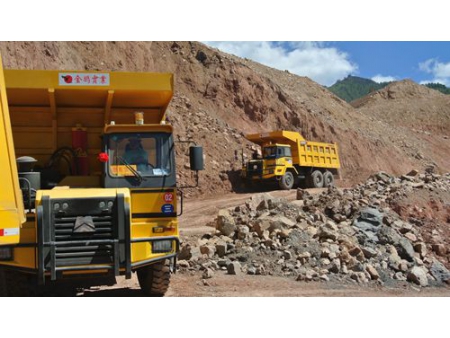

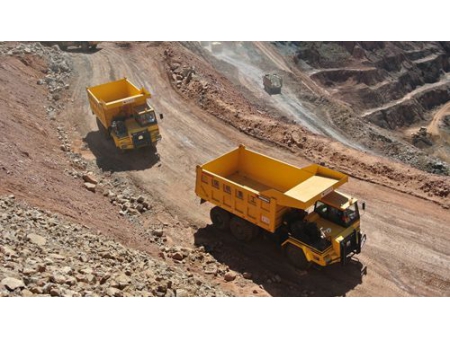

Gallery
![](public/propic/4082/b_14-mining-trucks_01b.jpg)
![](public/propic/4082/b_14-mining-trucks_02b.jpg)
![](public/propic/4082/b_14-mining-trucks_03b.jpg)
![](public/propic/4082/b_14-mining-trucks_04b.jpg)
![](public/propic/4082/b_14-mining-trucks_05b.jpg)
Brief Description
SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
