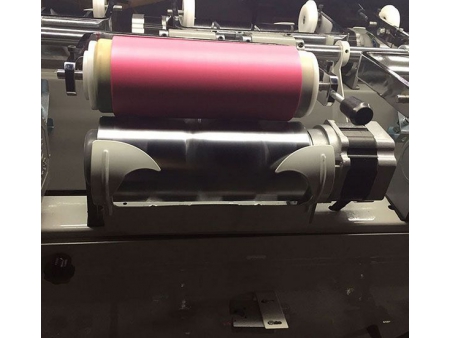

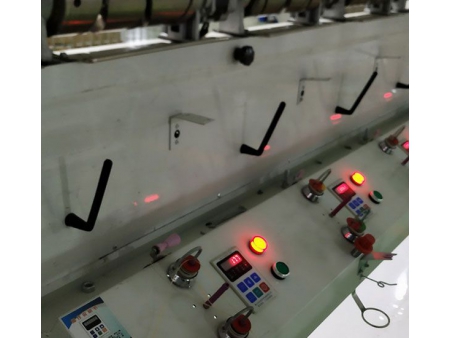

GH018-230 Type High Speed Yarn Bobbin Winding Machine
Request a Quote
Technical Parameters
| Traverse | 6″(230mm) |
| Layout/Number of spindles | single sided/5 spindles, two sided/min.5/max.50 |
| Power supply | 220V/three phases 380V50/60HZ |
| Drive | Individual AC motor per spindle |
| Power consumption | 0.18 kW/spindle |
| Take-up tubes | Cylindrical (0°)/cones with a conicity of 4°20, 5°57, 9°15 |
| Take-up package diameter | Up to 200 or 230mm |
| Winding linear speed | 300-1000 m/min |
| Electronic anti-patterning device | Frequency control |
| Length control device | Centralized control by PLC, length displaying |
| Tension device | Rotating self-clearing tensioner and waxing device per spindle |
| Mechanical yarn cleaning device | Optional adjustable cleaning cutter per spindle |
| Yarn broken auto-stop | Electronic auto-stop device |
| Speed controller | Frequency control |
| Electronic yarn cleaning device | Optional |
| Air splicer | Optional |
| Vacuum cleaner/Blower | Optional |
| Lighting system | Lamp |
| Dimensions | 2050(L)×600(W)×1500(H)mm (5 spindles) |
