  • JW3239C 10G PON Power Meter
JW3239C

As FTTx networks evolve to meet increasing demands, precise power measurement becomes critical for maintaining performance and reliability. This power meter not only supports traditional PON functions but also incorporates advanced XGPON and 10GEPON power measurement capabilities, addressing the needs of next-generation fiber networks. With customizable threshold settings, it enables users to evaluate optical power levels with precision and ensure compliance with network standards. Designed for deployment, testing, and maintenance, this metering tool is a necessary asset for operators managing both legacy and advanced infrastructures, facilitating seamless network performance and scalability.

Specifications
PON Mode
Measurement Wavelength 1310nm 1490nm 1550nm
Measurement Range 10 to -40dBm 10 to -40dBm 25 to -40dBm
Spectral Passband 1310nm ±50nm 1490nm ±10nm 1550nm ±30nm
Isolation 1490nm waveband >40dB 1310nm waveband >40dB 1490nm waveband >40dB
1550nm waveband >40dB 1550nm waveband >40dB 1550nm waveband >40dB
XGPON/10GEPON Mode
Measurement Wavelength 1270nm 1577nm
Measurement Range 10 to -40dBm 10 to -40dBm
Isolation 1577nm waveband >40dB 1270nm waveband >40dB
General
Pass-through Insertion Loss ≤1.5dB
Uncertainty ≤0.5dB
Display Resolution 0.01dB
Threshold Setting 10 groups
Data Storage 1000 records
Operating Temperature -10℃ to 60℃
Relative Humidity 0% to 95% RH

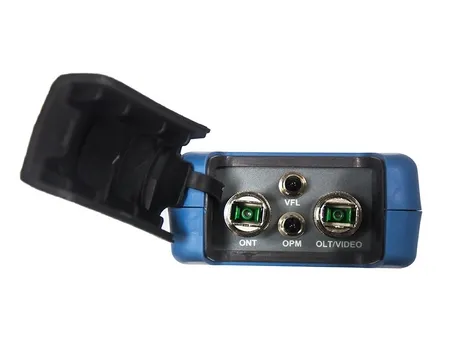

Optical Connector Type SC/PC (APC optional)

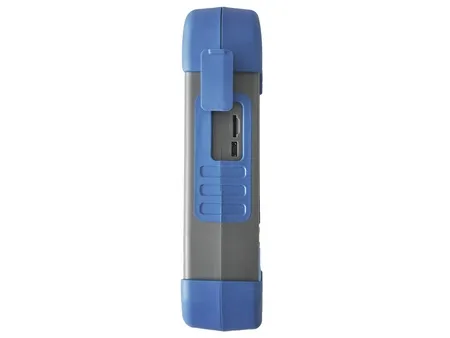

Communication Interface USB interface
Power Supply 3* AA1.5V battery
Operating Time ≥20h (continuous working) ≥60h (standby)
Dimensions (L×W×H) 192×102×50mm
Weight 420g
