The KCH-450D flow wrapper packaging machine is compatible with a maximum of 450mm wide film to produce pillow shaped bags with lengths ranging from 130-450mm and widths from 50-180mm. The machinery is perfect for packing regularly shaped products such as biscuits, cookies, noodles, napkins, and bread.

Bag types and samples

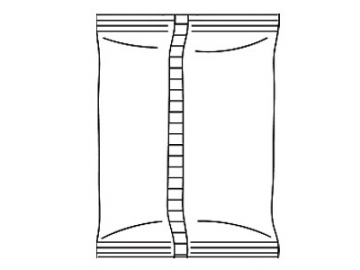

  • Pillow bag
  • Pillow bag with euro hole

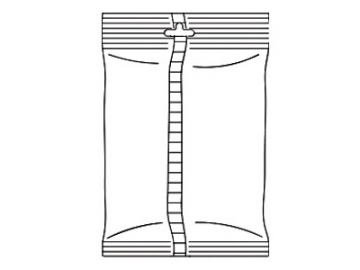

  • Pillow bag with round hole

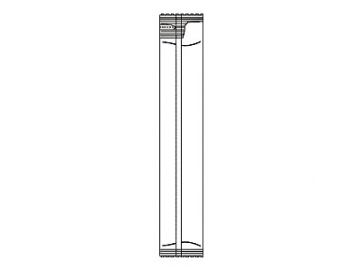

  • Stick seal bag

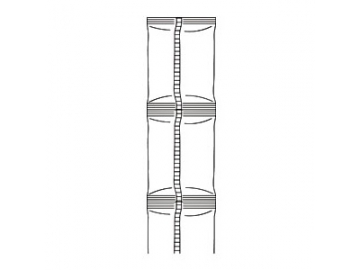

  • Linking bag
Specification
Model KCH-450D
Film width Max. 450mm
Bag length 130-450mm
Bag width 50-180mm
Product height Max.80mm
Film diameter Max. 320mm
Packing speed 30-180bag/min
Power supply 220V, 50/60HZ, 2.6KVA
Machine size (L) 820 * (W)4020 * (H) 1450mm
Weight 450Kg

Details

The 7-inch touch screen features clear parameters that are easy to set.

The bag forming unit can be freely adjusted, and offers various specifications without having to change the mold.

The flow-pack wrapper has the ability to locate and cut off without the film sticking to the blade, which not only prevents film waste, but also ensures the bag length error rate remains at 2mm, and saves money.
