Description

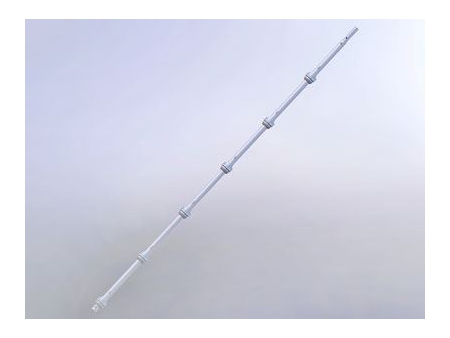

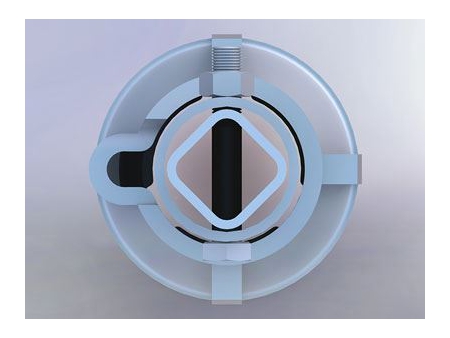

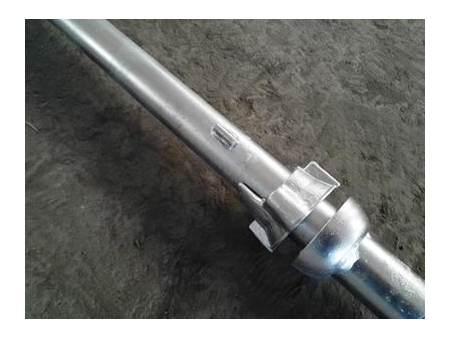

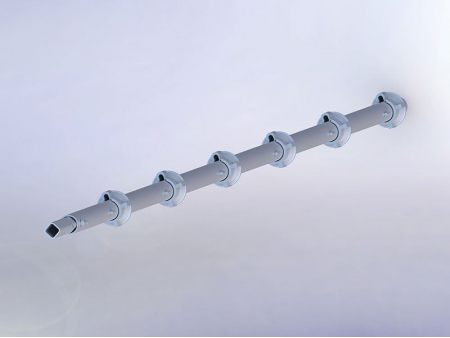

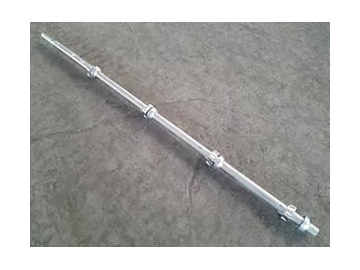

The cuplock standard features two top and bottom cups at an interval of 0.5m. These systems are quickly and easily assembled and disassembled and offer excellent stability. The cuplock standard provides vertical support for the entire scaffold cuplock system. The vertical pole is hot-dip galvanized.

Material

We generally use Q235 steel or Q345 steel. Q235 is cheaper than Q345, making it an economic choice and widely applied. But the yield strength of Q345 is greater than Q235. So customers tend to choose Q345 if they have higher material requirements.

Parameters
Item No. Description Weight (KGS) Weight (LBS)
CV910 Vertical with spigot 9'10"/3.0m 16.80 37.00
CV82 Vertical with spigot 8'2"/2.5m 14.04 30.93
CV66 Vertical with spigot 6'6"/2.0m 11.41 25.13
CV411 Vertical with spigot 4'11"/1.5m 8.70 19.16
CV33 Vertical with spigot 3'3"/1.0m 6.02 13.26
CV18 Vertical with spigot 1'8"/0.5m 3.32 7.31
